Threaded Weld Outlet
Material: Cabon Steel, Stainless Steel
Surface Treatment: anti-rust oil, painted, or galvanized
Threads: ASME B1.20.1, ISO 7/1
Specifications Met: ANSI/ASME B16.11, MSS SP-97

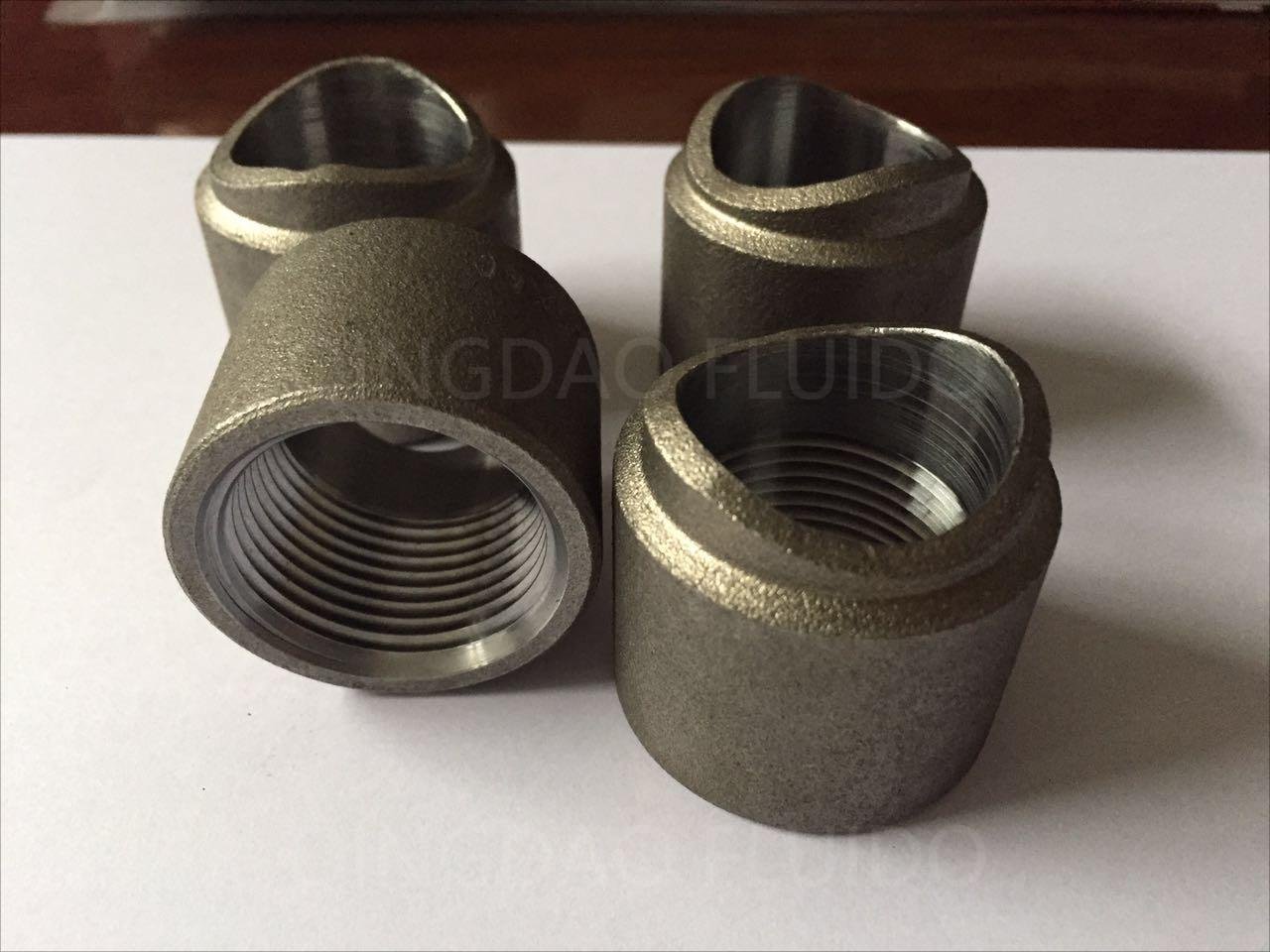

Threaded Weld Outlet
An outlet is a type of pipe fitting to create a branch connection in a piping system.
The threaded weld outlet has one threaded end and one weld end.
The weld end is to be welded onto a pipe at a desired location and the threaded end is for easy installation with a threaded end valve or other fitting.
Threaded weld outlets provide an easy installation and easy replacement for the connected parts. Also, ensured the safety at the weld end, provided a reliable way to create branch connections in piping systems.

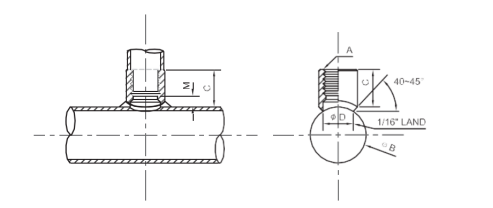

Threaded weld outlet dimension
| Size | In | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
Pipe Run Size | In | 1-4" | 1-4" | 1-1/4"-6" | 1-1/2"-6" | 2"-6" | 3"-6" | 3"-8" | 4"-8" | 6"-8" |
| A | In | 1.083 | 1.331 | 1.555 | 1.87 | 2.165 | 2.724 | 3.209 | 3.957 | 4.961 |
| C | In | 1.063 | 1.126 | 1.248 | 1.374 | 1.626 | 1.752 | 2.217 | 2.5 | 3 |
Note:
Threaded Welded Outlet used for fire hydrant, for cold water system please check high-pressure-threaded-outlet
The MOQ is 500pcs for each size.
