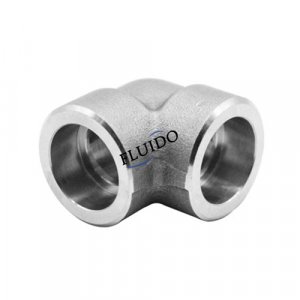

Socket Weld 90 Degree Elbow

Forged Pipe Fittings

Size: 1/8"-4" threaded and socket weld type

Pressure:

Socket weled : 3000LB 6000LB 9000LB (sch80 sch160 xxs)

Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)

Conection: Thread (NPT, BSP,RP, G) ,Socket Welding

Type: Elbow, Tee, nipple, full coupling, half coupling, lateral, cross,cap, plug, hex head nipple, swage nipple, union, weldolet, sockolet, threadolet, nipolet, elbolet, latrolet etc.

Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;

Material: Stainless steel, Carbon steel and Duplex stainless steel

Inquire Now

Share to:

Introduction

ANSI/ASME B16.11 SOCKET WELD 90 DEGREE ELBOW DIMENSIONS

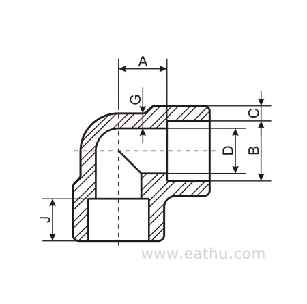

Socket-Weld-90-Degree-Elbow Socket-Weld-90-Degree-Elbow-Dimension

DN	Nom.	Center to Bottom of Socket-A						Socket	Bore Dia.Of Fitting			Socket Wall Thickness（2）						Body Wall Thickness			Depth
	Pipe	Center to Bottom of Socket-A						Bore	D			C						G			of
	Size	90°Elbows			45°Elbows			Dia.				Class Designation						Class Designation			Socket
		Tees,Crosses			45°Elbows			B				Class Designation						Class Designation			Min.
		Class Designation			Class Designation				Class Designation			3000		6000		9000		3000	6000	9000	J
		3000	6000	9000	3000	6000	9000		3000	6000	9000	Ave.	Min.	Ave.	Min.	Ave.	Min.	Min.	Min.	Min.
6	1/8"	11	11	---	8	8	---	10.8	6.9	4	---	3.18	3.18	3.96	3.43	---	---	2.41	3.15	---	9.5
8	1/4"	11	13.5	---	8	8	---	14.2	9.3	6.4	---	3.78	3.3	4.6	4.01	---	---	3.02	3.68	---	9.5
10	3/8"	13.5	15.5	---	8	11	---	17.6	12.6	9.2	---	4.01	3.5	5.03	4.37	---	---	3.2	4.01	---	9.5
15	1/2"	15.5	19	25.5	11	12.5	15.5	21.8	15.8	11.8	6.4	4.67	4.09	5.97	5.18	9.35	8.18	3.73	4.78	7.47	9.5
20	3/4"	19	22.5	28.5	13	14	19	27.2	21	15.6	11.1	4.9	4.27	6.96	6.04	9.78	8.56	3.91	5.56	7.82	12.5
25	1"	22.5	27	32	14	17.5	20.5	33.9	26.7	20.7	15.2	5.69	4.98	7.92	6.93	11.38	9.96	4.55	6.35	9.09	12.5
32	1-1/4"	27	32	35	17.5	20.5	22.5	42.7	35.1	29.5	22.8	6.07	5.28	7.92	6.93	12.14	10.62	4.85	6.35	9.7	12.5
40	1-1/2"	32	38	38	20.5	25.5	25.5	48.8	40.9	34	28	6.35	5.54	8.92	7.8	12.7	11.12	5.08	7.14	10.15	12.5
50	2"	38	41	54	25.5	28.5	28.5	61.2	52.5	42.9	38.2	6.93	6.04	10.92	9.5	13.84	12.12	5.54	8.74	11.07	16
65	2-1/2"	41	---	---	28.5	---	---	73.9	62.7	---	---	8.76	7.67	---	---	---	---	7.01	---	---	16
80	3"	57	---	---	32	---	---	89.8	78	---	---	9.52	8.3	---	---	---	---	7.62	---	---	16
100	4"	66.5	---	---	41	---	---	115.2	102.3	---	---	10.69	9.35	---	---	---	---	8.56	---	---	16
100	4"	66.5	---	---	41	---	---	115.2	102.3	---	---	10.69	9.35	---	---	---	---	8.56	---	---	16

(1) Dimensions in Millimeters.

(2) Average of socket wall thickness around periphery shall be no less than listed values. The minimum values are permitted in localized areas.

(3) Upper and lower values for each size are the respective maximum and minimum dimensions.
