A pipe plug is used at the end of the pipe to stop the flow. A round head plug is a kind of plug with a round head. A hex head plug is also commonly seen.
Size: 1/8"-4" threaded type
Pressure:
Threaded : 2000LB 3000LB 6000LBS (sch80 sch160 xxs)
Connection: Thread (NPT, BSP,RP, G)
Standard: ANSI B16.11,EN10241, BS3799,JIS B2316,MSS SP-83,MSS SP-79;
Material: Stainless steel, Carbon steel and Duplex stainless steel

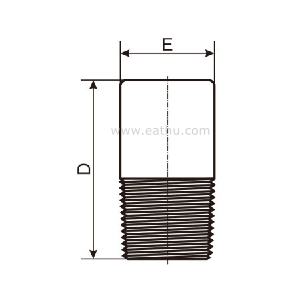

Round Head Plug Dimension
| DN | Nom. | Length | Square Head Plug | Round Head Plug | Hex.Head Plug&Bushing | ||||
| Pipe | (Min) | Height of | Width Flat | Nominal | Length | Width Flat | Hex.Height(Min.） | ||
| Size | A | Square | (Min.) | Diameter | (Min.) | (Nom.) | |||
| (Min.) | C | of Head(Nom) | E | F | Bushing | Plug | |||
| B | D | G | H | ||||||
| 6 | 1/8" | 10 | 6 | 7 | 10 | 35 | 6 | ||
| 8 | 1/4" | 11 | 6 | 10 | 14 | 41 | 16 | 3 | 6 |
| 10 | 3/8" | 13 | 8 | 11 | 18 | 41 | 18 | 4 | 8 |
| 15 | 1/2" | 14 | 10 | 14 | 21 | 44 | 22 | 5 | 8 |
| 20 | 3/4" | 16 | 11 | 16 | 27 | 44 | 27 | 6 | 10 |
| 25 | 1" | 19 | 13 | 21 | 33 | 51 | 36 | 6 | 10 |
| 32 | 1-1/4" | 21 | 14 | 24 | 43 | 51 | 46 | 7 | 14 |
| 40 | 1-1/2" | 21 | 16 | 28 | 48 | 51 | 50 | 8 | 16 |
| 50 | 2" | 22 | 18 | 32 | 60 | 64 | 65 | 9 | 18 |
| 65 | 2-1/2" | 27 | 19 | 36 | 73 | 70 | 75 | 10 | 19 |
| 80 | 3" | 28 | 21 | 41 | 89 | 70 | 90 | 10 | 21 |
| 100 | 4" | 32 | 25 | 65 | 114 | 76 | 115 | 13 | 25 |
(1) Dimensions in Millimeters.
(2) Dimension B is minimum length of perfect thread. The length of useful thread(B plus threads with fully formed roots and flat crests)shall not be less than L2(effective length of external thread)required by American National Standard for Pipe Threads ANSI/ASME B1.20.1)
