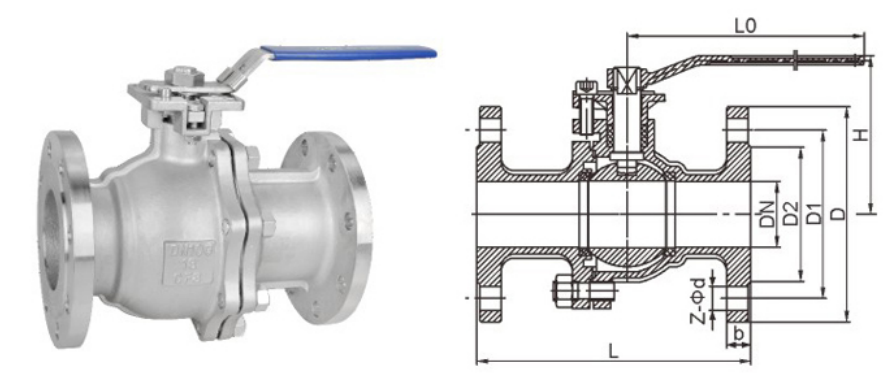

A 2-inch stainless steel flange floating ball valve is a type of valve commonly used in piping systems to control the flow of liquids and gases. Here are some key features and specifications typically associated with this type of valve:

1. Design:
- Floating Ball: The ball is not fixed and can move slightly to allow for a tight seal against the seat when the valve is closed.
- Flanged Ends: The valve has flanges on both ends for easy installation in a piping system. Flanged connections provide a secure and leak-proof joint.

2. Material:
- Stainless Steel: Made from stainless steel (often 304 or 316), which provides excellent corrosion resistance and durability. This makes it suitable for various applications, including water, oil, gas, and chemical handling.

3. Size:
- 2-Inch Diameter: The nominal size of the valve is 2 inches, which refers to the inner diameter of the pipe it connects to.

4. Actuation:
- Can be operated manually (with a lever or handle) or automatically (using electric or pneumatic actuators).

5. Pressure Rating:
- Typically rated for high pressure, often up to 150 psi or more, depending on the specific design and materials used.

6. Temperature Rating:
- Usually designed to handle a wide range of temperatures, suitable for both hot and cold applications.

7. Sealing Mechanism:
- The valve seat is typically made from materials like PTFE (Teflon) or other elastomers to ensure a tight seal.
