U Flange Type Butterfly Valve

Butterfly Valve

U Flange Type Butterfly Valve

1.Single Eccentric Disc-Shaft

2.Anti-Blow Out Stem

3.Bi-Directional

4.Fire safe Design

5.Low Friction Body Seat

6.Zero Leakage

A U-flange butterfly valve is a type of butterfly valve that features a U-shaped flange design for easy installation and connection to piping systems. This design allows for quick and convenient mounting of the valve onto the pipeline, saving time and effort during installation. U-flange butterfly valves are commonly used in various industries.

Inquire Now

Share to:

Introduction

U Flange Type Butterfly Valve

Adoptive Standards

Valve Design: API 609, MSS SP-67

Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1

Pressure Test: API 598

Flange Drilling: ANSI B16.1 class150, BS4504 PN10/PN16, DIN2501 PN10/PN16

Top Flange: ISO5211

Standard Test

Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Seat Test: 1.1 times the working pressure with water.

Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), undergo goes a complete operating test (Open/Close). This test was carried out without pressure and at ambient temperature.

Special Test: On request, any other test can be carried out according to special instructions by the client.

Application

● Water Treatment Plant

● Drilling Rigs

● Paper Industry

● Gas Plant

● Sugar Industry

● Cooling Water Circulation

● Breweries

● Heating & Air Conditioning

● Chemical Industry

● Pneumatic Conveyors

● Waste Effluent Treatment Plant

● Compressed Air

MATERIALS
ITEM	PARTS NAME	MATERIAL
1	BODY	CAST IRON/DUCTILE IRON
2	DISC	DUCTILE IRON/CF8/CF8M/AL BRONZE
3	STEM	STAINLESS STEEL
4	PIN	STAINLESS STEEL
5	SEAT	NBR/EPDM/PTFE/VITON
6	O-RING	NBR/EPDM/VITON
7	KEY	CABON STEEL

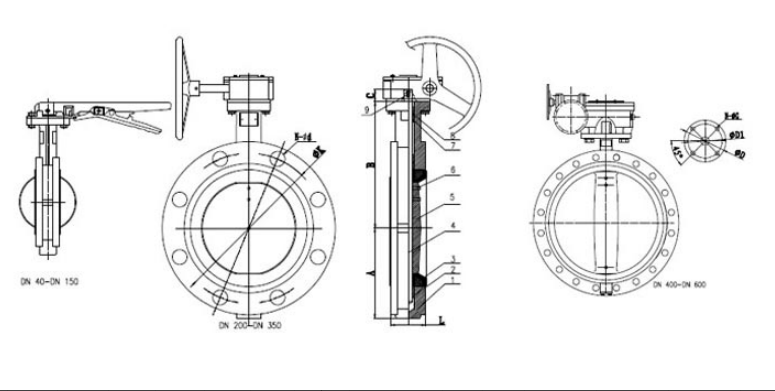

DIMENSIONS
DN	A	B	C	D	E		N-F/(4-M)		G		H	J	I-K	L	T	S	W
DN	A	B	C	D	PN10	PN16	PN10	PN16	PN10	PN16	H	J	I-K	L	T	S	W
40	70	145	32	12.7	110	110	4-18	4-18	150	150	65	50	4-7	33	27	10	10
50	76	162	32	12.7	125	125	4-18	4-18	165	165	65	50	4-7	42	32	10	10
65	80	174	32	12.7	145	145	4-18	4-18	185	185	65	50	4-7	45	47	10	10
80	90	181	32	12.7	160	160	4-18	4-18	200	200	65	50	4-7	45	65	10	10
100	110	200	32	15.9	180	180	8-18	8-18	220	220	90	70	4-9.5	52	90	14	12
125	125	213	32	19.1	210	210	8-18	8-18	250	250	90	70	4-9.5	54	110	17	14
150	143	225	32	19.1	240	240	8-22	8-22	285	285	125	70	4-9.5	56	145	17	14
200	175	260	38	22.2	295	295	8-22	8-22	340	340	125	102	4-11.5	60	193	17	17
250	203	292	38	28.6	350	3505	12-22	12-26	395	405	125	102	4-11.5	66	241	22	22
300	245	337	38	31.8	400	410	12-22	12-26	445	460	125	102	4-11.5	77	292	22	24
350	277	368	45	31.8	460	470	16-22	16-26	505	520	125	102	4-11.5	77	325	22	24
400	308	400	51	33.3	515	525	16-22	16-30	565	580	210	165	4-22	86	380	27	27
450	342	422	51	38.1	565	585	16-26	20-30	615	640	210	165	4-22	105	428	27	27
500	374	479	64	41.3	620	650	20-26	20-33	670	715	210	165	4-22	130	474	36	32
600	459	562	70	50.8	725	770	20-26	20-36	780	840	210	165	4-22	152	575	36	36
700	520	624	72	55	840	840	20-30	24-36	895	910	300	254	8-18	165	674	-	-
750	565	650	72	55	900	900	24-33	24-36	965	970	300	254	8-18	167	726	-	-
800	591	672	72	55	950	950	24-33	24-39	1025	1025	300	254	8-18	190	771	-	-
900	610	687	77	75	1050	1050	24-33	24-39	1115	1125	300	254	8-18	207	839	-	-
1000	685	823	85	85	1160	1160	24-36	24-42	1230	1255	300	254	8-18	216	939	-	-
1050	785	858	85	85	-	-	-	-	-	-	300	254	8-18	256	997	-	-
1200	839	940	150	92	1380	1390	28-39	28-48	1455	1485	350	298	8-22	276	1125	-	-
