Specification: DN50-DN2000(2"-80"), available with PN10, PN16, PN25 and PN40 flanges

Ductile Iron Flange Fittings Standard: ISO2531, ISO4179, ISO8179, BS EN 545, BS EN598, BS4772, ISO7005-2, EN1092-2:1997, DIN2501, GBT13295

Flange: PN10, PN16 or PN25 drilling in accordance with ISO 7005-2/EN 1092-2.

Fluid Temperature: 0°C-50°C， excluding frost.

Pipe ends: Spigot, socket or flanges.

Internal coating: Cement mortar lining comply with ISO4179 or bitumen painting (Ave. min.70 micron) or Fusion Bonded Epoxy Coating

External coating: Sprayed metallic zinc coating (min.150g/m²) according to ISO8179 + bitumen painting (min.70 micron) or epoxy powder coating or epoxy painting or according to customer’s requirements.

Types: Dismantling Joint, Universal Flange Adaptor, Universal Coupling, Ductile Iron Loose Flange Joint, DI Pipe Fitting, Saddle for PVC Pipe, Repair Clamp, Qucick Flange Adaptor, Gibault Joint, Restrained Flange Adaptor, Restrained Coupling, Valve, etc.

Material: MATERIAL: Ductile iron grade 500-7/ 450-12 in accordance with ISO 1083 for ductile iron fitting body and retainer, EPDM/NBR for ring, steel zinced/dacro for stub.

Application: Municipal Use, Waterworks Pipelines, Piping Fittings, Water Engineering, Potable Water Use, Irrigation Use, Water Supply Project Use, Water Treatment Plants Use, Pumping Stations, Water Utility Sectors, Water-Supply Pressure Pipeline, Potable Water Pumping Station, Stormwater Lines, Fire Water Pumping Station, Fresh Water Pumping Station, ect.

Test: In accordance with ISO 2531 / EN 545 / EN598 and 100% water pressure test.

Loosing Flanged 22.5° Bend  is commonly used in piping systems to change the direction of flow while maintaining a specific angle, in this case, 22.5 degrees.

Here are some details about loose flanged bends:

Key Characteristics:

1. Angle: The 22.5° angle allows for a gradual change in direction, which can help reduce turbulence and pressure loss in the system.

2. Loose Flanges: Unlike welded flanges, loose flanges can be attached and detached easily. This feature is useful for maintenance and repairs since it allows for easier disassembly.

3.Material: These bends can be made from various materials such as carbon steel, stainless steel, or other alloys, depending on the application and the fluids being transported.

4. Applications: Commonly used in industries such as oil and gas, water treatment, chemical processing, and HVAC systems.

5. Installation: Proper installation is crucial to ensure a leak-free and efficient piping system. Gaskets are often used between flanges to create a tight seal.

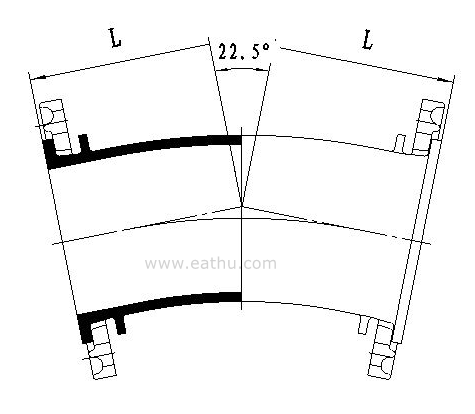

Dimensions of Loosing Flanged 22.5°Bend
