2PC Stainless Steel Flanged Ball Valve
Size:1/2"~10"
Pressure:PN16-PN40
Body Materials:Stainless Steel ,CF8,CF8M
Ball Materials:Stainless Steel ,CF8,CF8M
Seal Materials:PTFE
Connection:flange
Drive type: handle
Structure type:floating
Parts | Material |
Body | ASTM A351-CF8M |
Cap | ASTM A351-CF8M |
Ball | ASTM A351-CF8M |
Ball Seat | TFM 1600 |
Body Seal | PTFE |
Thrust Washer | PTFE |
Packing | PTFE |
Stem | ASTM A276-316 |
Gland Nut | AISI 304 |
Stop Pin | AISI 304 |
Handle | AISI 304 |
Handle Sleeve | PVC |
Stem Nut | AISI 304 |
Spring Washer | AISI 304 |
Bolt | AISI 304 |
Gland | AISI 304 |
Stopper | AISI 304 |
Circlips for Shaft | AISI 304 |
Steel Tube | AISI 304 |
Wrench Block | AISI 304 |
Bolt | AISI 304 |

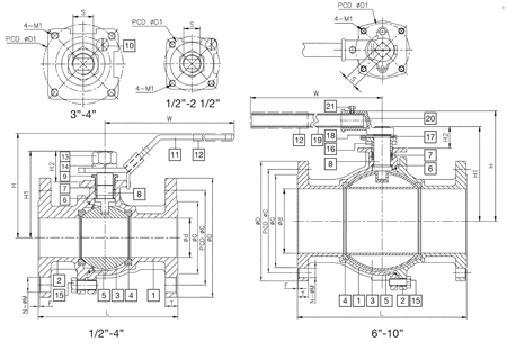

SIZE | d | L | T | F | N | M | G | C | D | H | H1 | H2 | S | W | D1 | M1 | Torque | WT |
1/2" | 0.59 | 4.25 | 0.38 | 0.06 | 4 | 0.63 | 1.38 | 2.38 | 3.5 | 3.39 | 2.25 | 0.93 | 0.44 | 6.65 | 1.65 | M5 | 34 | 3.7 |
3/4" | 0.79 | 4.61 | 0.38 | 0.06 | 4 | 0.63 | 1.69 | 2.76 | 3.9 | 3.5 | 2.36 | 0.93 | 0.44 | 6.65 | 1.65 | M5 | 49 | 4.6 |
1" | 0.98 | 5 | 0.38 | 0.06 | 4 | 0.63 | 2.01 | 3.11 | 4.25 | 4.06 | 2.89 | 1.14 | 0.5 | 8.09 | 1.97 | M6 | 58 | 6.4 |
1-1/4" | 1.26 | 5.51 | 0.44 | 0.06 | 4 | 0.63 | 2.5 | 3.5 | 4.61 | 4.06 | 3.09 | 1.14 | 0.5 | 8.09 | 1.97 | M6 | 80 | 8.6 |
1-1/2" | 1.5 | 6.5 | 0.5 | 0.06 | 4 | 0.63 | 2.88 | 3.88 | 5 | 5.12 | 4.05 | 1.55 | 0.75 | 10.51 | 2.76 | M8 | 222 | 12.6 |
2" | 1.97 | 7.01 | 0.57 | 0.06 | 4 | 0.75 | 3.62 | 4.75 | 5.98 | 5.31 | 4.35 | 1.55 | 0.75 | 10.51 | 2.76 | M8 | 337 | 18.5 |
2-1/2" | 2.56 | 7.48 | 0.63 | 0.06 | 4 | 0.75 | 4.12 | 5.47 | 7.01 | 5.79 | 4.8 | 1.52 | 0.75 | 11.38 | 2.76 | M8 | 399 | 29.3 |
3" | 3.15 | 7.99 | 0.69 | 0.06 | 4 | 0.75 | 5 | 5.98 | 7.48 | 6.54 | 5.59 | 1.69 | 0.75 | 15.35 | 4.02 | M10 | 540 | 36.2 |
4" | 3.94 | 9 | 0.88 | 0.06 | 8 | 0.75 | 6.19 | 7.5 | 8.98 | 7.13 | 6.18 | 1.69 | 0.75 | 15.35 | 4.02 | M10 | 709 | 61.1 |
6" | 5.91 | 15.51 | 1 | 0.06 | 8 | 0.87 | 8.5 | 9.51 | 10.98 | 10.1 | 8.66 | 1.97 | 1.06 | 29.25 | 4.92 | M12 | 1682 | 119 |
8" | 7.87 | 17.99 | 1.13 | 0.06 | 8 | 0.89 | 10.63 | 11.75 | 13.5 | 13.15 | 11.83 | 3.37 | 1.42 | 33.07 | 5.51 | M16 | 4160 | 194 |
10" | 9.84 | 20.98 | 1.19 | 0.06 | 12 | 1 | 12.76 | 14.25 | 15.98 | 14.88 | 13.17 | 2.93 | 1.42 | 40.94 | 5.51 | M16 | 6638 | 359.4 |
*Actual torque values may vary. Please consult the Eathu Sales team.
**All torque values are in in-lb. Weight values are in lb.
