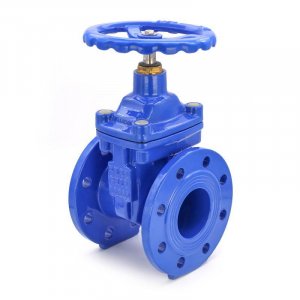

BS3464 Non-rising Stem Gate Valves
Product name : BS3464 Metal Seat Gate Valve
Description : BS3464 Metal Seat Gate Valve
Description : PN16
BS CAST IRON NON-RISING STEM,METAL SEATED,GATE VALVE BS3464 PN16

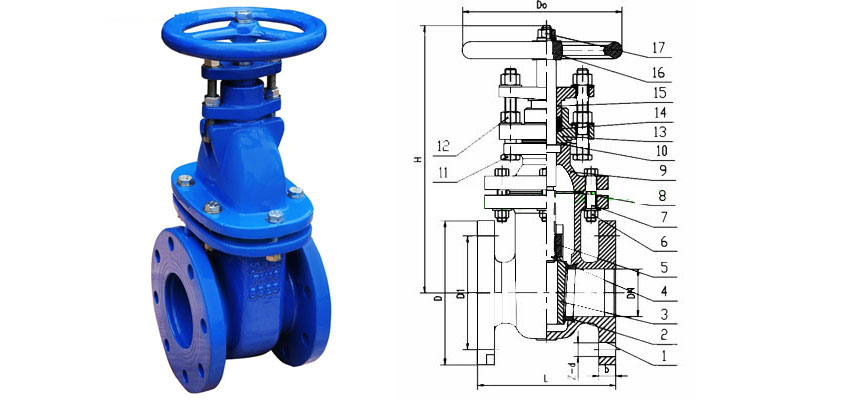

Technical Specifications of BS3464 Non-rising Stem Gate Valves:
MATERIALS
| ITEM | PARTS NAME | MATERIAL |
| 1 | BODY | CAST IRON |
| 2 | SEAT | BRASS |
| 3 | WEDGE DISC | CAST IRON+BRASS |
| 4 | STEM | STAINLESS STEEL |
| 5 | STEM NUT | BRASS |
| 6 | NUT | CARBON STEEL |
| 7 | BOLT | CARBON STEEL |
| 8 | GASKET | GRAPHITE |
| 9 | BONNET | CAST IRON |
| 10 | GASKET | GRAPHITE |
| 11 | BOLT | CARBON STEEL |
| 12 | NUT GASKET | CARBON STEEL |
| 13 | STUFFING BOX | CAST IRON |
| 14 | PACKING | GRAPHITE |
| 15 | GLAND | CAST IRON |
| 16 | WHEEL | CAST IRON |
| 17 | NUT GASKET | CARBON STEEL |
Parts and Materials of BS3464 Non-rising Stem Gate Valves:
| DN | L | D | D1 | b | Z-∮d | D0 | H | KG |
| 50 | 146 | 165 | 125 | 20 | 4-18 | 160 | 282 | 13.9 |
| 65 | 159 | 185 | 145 | 20 | 4-18 | 160 | 312 | 18.5 |
| 80 | 165 | 200 | 160 | 22 | 8-18 | 200 | 340 | 23.6 |
| 100 | 172 | 220 | 180 | 22 | 8-18 | 200 | 405 | 29.3 |
| 125 | 190 | 250 | 210 | 24 | 8-18 | 240 | 472 | |
| 150 | 210 | 285 | 240 | 24 | 8-23 | 240 | 540 | 54.7 |
| 200 | 241 | 340 | 295 | 26 | 12-23 | 320 | 713 | 107.9 |
| 250 | 273 | 405 | 355 | 28 | 12-27 | 320 | 834 | 167.1 |
| 300 | 305 | 460 | 410 | 28 | 12-27 | 360 | 885 | 213.7 |
