Size: 1/8"-4"
Pressure: 2000LB 3000LB 6000LBS (sch40 sch80 sch160 xxs)
Conection: Thread (NPT, BSP,RP, G)
Standard: ANSI B16.11,EN10241, BS3799,MSS SP-83,MSS SP-79;
Material: Stainless steel, Carbon steel

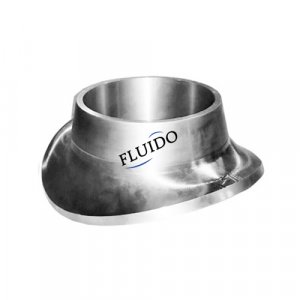

A thread outlet for a pipe branch is a fitting that allows for the connection of a smaller pipe to a larger pipe at a branch point.
The threaded outlet typically has a female threaded connection on one end to attach to the larger pipe,
and a male threaded connection on the other end to attach to the smaller pipe.
This type of fitting is commonly used in plumbing and piping systems to create branch connections.
It allows for easy installation and removal of the branch pipe without welding or soldering.
Threaded outlets come in various sizes and materials to suit different applications and pipe sizes. They are typically made of carbon steel or stainless steel.
Threaded Outlet Dimension Reduced
| Out-Let | Reducing Way(mm) | |||||
| Pipe | A | C | F | |||
| NPS | 3000lb | 6000lb | 3000lb | 6000lb | 3000lb | 6000lb |
| (in) | (Sch80) | (Sch160) | (Sch80) | (Sch160) | (Sch80) | (Sch160) |
| 1/8" | 19 | --- | 13.7 | --- | 17.3 | --- |
| 1/4" | 19 | --- | 13.7 | --- | 22 | --- |
| 3/8" | 21 | --- | 17.1 | --- | 25.8 | --- |
| 1/2" | 25 | 32 | 21.3 | 16.6 | 31.3 | 33.9 |
| 3/4" | 27 | 37 | 26.7 | 21.2 | 37.1 | 41.2 |
| 1" | 33 | 40 | 33.4 | 27 | 45.5 | 49.9 |
| 1-1/4" | 33 | 41 | 42.2 | 35.8 | 57 | 58.6 |
| 1-1/2" | 35 | 43 | 48.3 | 41.2 | 64 | 66.7 |
| 2" | 38 | 52 | 60.3 | 51.6 | 76 | 83.2 |
| 2-1/2" | 46 | --- | 73 | --- | 92 | --- |
| 3" | 51 | --- | 88.9 | --- | 109.2 | --- |
| 4" | 57 | --- | 114.3 | --- | 140 | --- |

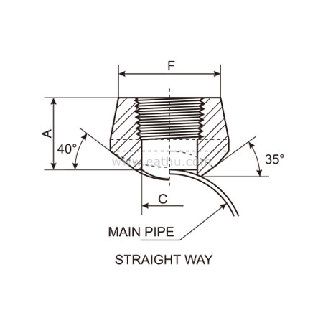

Threaded Outlet Dimension Straight
| Out-Let | Straight Way(mm) | ||
| Pipe | A | C | F |
| NPS | 3000lb | ||
| (in) | |||
| 1/8" | |||
| 1/4" | 19 | 11.5 | 22 |
| 3/8" | 21 | 14.5 | 25.9 |
| 1/2" | 25 | 16.5 | 31.4 |
| 3/4" | 27 | 21.5 | 37.1 |
| 1" | 33 | 27.2 | 45.5 |
| 1-1/4" | 33 | 36 | 57 |
| 1-1/2" | 35 | 42 | 64 |
| 2" | 38 | 53 | 76 |
| 2-1/2" | 46 | 65 | 92 |
| 3" | 51 | 80 | 109.2 |
| 4" | 57 | 104 | 140 |
Conventional Run Size Combinations
| OUTLET SIZE | |||||||||||
| 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | |
| RUN SIZE | 3/8"~3/4" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 3-1/2" | 5" |
| (Main Pipe) | 1"~36" | 3/4"~1-1/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 3-1/2" | 4" | 6" |
| Reducing Way | 1-1/2"~36" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 3-1/2" | 4" | 5" | 8" | |
| 1-1/2"~3" | 2"~3" | 2-1/2" | 3" | 3-1/2" | 4" | 5" | 6" | 10" | |||
| 3-1/2"~36" | 3-1/2"~6" | 3" | 3-1/2"~5" | 4"~5" | 5"~6" | 6" | 8" | 12"~14" | |||
| 8"~36" | 3-1/2~4" | 6"~8" | 6"~10" | 8"~10" | 8" | 10" | 16"~18" | ||||
| 5~10" | 10"~36" | 12"~36" | 12"~18" | 10"~14" | 12"~16" | 20"~24" | |||||
| 12"~36" | 20"~36" | 16"~36" | 18"~36" | 26"~36" | |||||||
| Straight Way | 3/8"~36" | 1/2"~36" | 3/4"~36" | 1"~36" | 1-1/4"~1-1/2" | 1-1/2" | 2" | 2-1/2" | 3" | 3-1/2" | 5" |
| 2~36" | 2"~3" | 2-1/2"~4" | 3"~3-1/2" | 3-1/2"~4" | 4" | 6" | |||||
| 3-1/2"~36" | 5"~36" | 4"~6" | 5"~8" | 5" | 8" | ||||||
| 8"~36" | 10"~36" | 6" | 10" | ||||||||
| 8"~12" | 12"~16" | ||||||||||
| 14"~36" | 18"~36" | ||||||||||
Note: Each charted outlet size is designed to fit the number of run pipe sizes.
