Stainless steel camlock

Stainless Steel 150lbs Screwed Fittings

Size: 1/2" ,3/4", 1",125,150,2",3",4",5",6"

Pressure: 150lbs

Dimension: ISO4144

Technical: Precision Casting and punch press

Material: SUS304, SUS316

Connection type: Female threaded

Gasket: buna(NBR),viton and Telfon

Thread end: NPT, FNPT, BSPT, BSP,G,DIN2999&BS21,ISO228/1&ISO7/1

Inquire Now

Share to:

Introduction

Stainless steel camlock

Stainless steel camlock fittings are quick-connect couplings used in a variety of industrial applications for connecting hoses and pipes. They are made of high-quality stainless steel, making them durable, corrosion-resistant, and suitable for use in harsh environments.

These camlock fittings consist of two parts – a male adapter with a groove and a female coupler with cam arms. When the two parts are pressed together, the cam arms lock into place, creating a secure and leak-proof connection.

Stainless steel camlock fittings are commonly used in industries such as oil and gas, chemical processing, food and beverage, and agriculture. They are available in various sizes and configurations to accommodate different hose and pipe diameters.

Stainless steel camlock F

TYPE F

SIZE ITEM	inch	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	5"	6"
SIZE ITEM	mm	15	20	25	32	40	50	65	80	100	125	150
B		22	22	26	30.7	38.4	47.5	60	76.5	103.5	127.2	152.4
C		36.5	36.5	42	51	53.5	58.5	72	68	69	74	79.5
D		31.5	32	38	47.2	54	65	79.5	94.3	122	151	176
L		66	80	90	105	120	141

Stainless steel camlock B

TYPE B

SIZE ITEM	inch	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	5"	6"
SIZE ITEM	mm	15	20	25	32	40	50	65	80	100	125	150
B		50.5	51	59	71	79	89	102	124	149
C		40.5	40.5	46.3	56	63	74.5	88	104.7	134	161	195
D		29	29.5	37	44	43.5	51	53	57	57	59	67
E		14.5	19.8	25	31	39.5	50.5	65	78.5	102	122.3	143
L		45	45	56.5	66	67	75.2	83	90	96	95	107

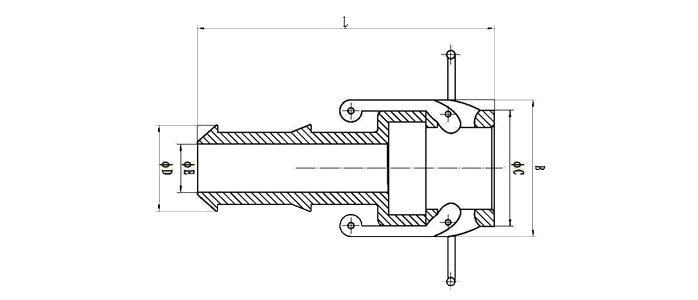

Stainless steel camlock C

TYPE C

SIZE ITEM	inch	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	5"	6"
SIZE ITEM	mm	15	20	25	32	40	50	65	80	100	125	150
B		51	51	59	71	79	89	102	123	150.5
C		40	40	46	56	64	73.5	87	104.5	134	161	195
D		19.5	19.5	26	32.3	39	53	64	78.7	105.3	130	155
L		89	89	100	113.2	115	129	148.5	157.5	168.5	176	196

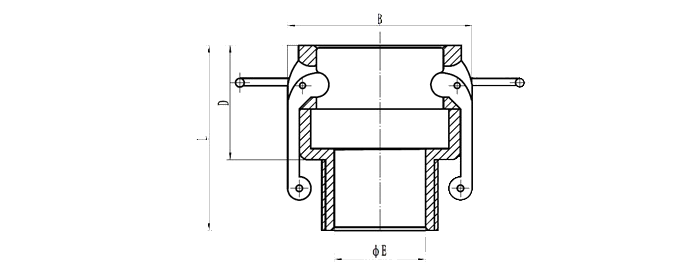

Stainless steel camlock D

TYPE D

SIZE ITEM	inch	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	5"	6"
SIZE ITEM	mm	15	20	25	32	40	50	65	80	100	125	150
B		51	51	59	71	79	89	103.5	122	151	161	195
D		29.5	29.5	37	43.5	44	51	53	55	57	59	67
E		16.2	19.5	26	36	40	49	59	71	102	146	176.5
L		42.5	42.5	53	64	63	75	81	85.5	90	98	110

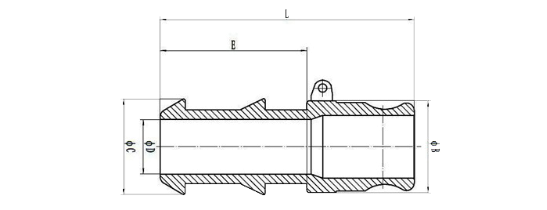

Stainless steel camlock E

TYPE E

inch	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	5"	6"
mm	15	20	25	32	40	50	65	80	100	125	150
B	32.8	32.8	37	46.5	54	64	77	92.5	121.5	145.5	175.8
C	19.8	19.8	26	33	39	52.2	66	77.6	105.5	130	155
D	14	14	20	27	32	44	57	69	96.5	117.5	141
E	53.5	53.5	63	68	69.5	80.5	89.5	101.5	111	117	129
L	93	93	103	114	118	133.5	144.3	161.5	171	233	248

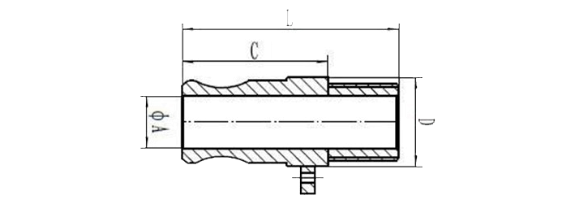

Stainless steel camlock F

TYPE F

SIZE ITEM	inch	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	5"	6"
SIZE ITEM	mm	15	20	25	32	40	50	65	80	100	125	150
A		22	22	25.2	30	38	48.5	60	76.5	104.5	127.2	152.4
C		36	36	41.5	50.5	52.5	57.5	58.7	69	67	72.5	78
D		32	32	36.7	46.2	53	64	77.5	92.5	121	151	176
L		50.5	51.7	59.5	72	74	82.5	88	99.5	105	112.5	122

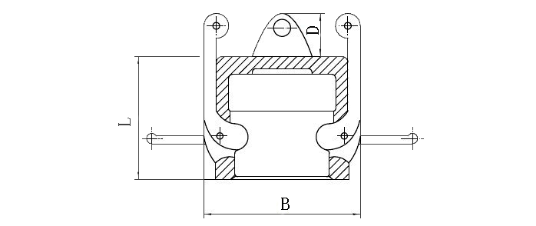

Stainless steel camlock DC

TYPE DC

SIZE ITEM	inch	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	5"	6"
SIZE ITEM	mm	15	20	25	32	40	50	65	80	100	125	150
B		51	51	59.3	70	78	89	101.5	122.5	150	182	215
D		10.5	10.5	10.8	12	12.8	12	14.5	16	16	16	16
L		32	32	40	45	46	53	56	61	59	64	73

Stainless steel camlock DP

TYPE DP

SIZE ITEM	inch	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"	5"	6"
SIZE ITEM	mm	15	20	25	32	40	50	65	80	100	125	150
B		10.5	10.5	10.5	11.5	11.3	13.5	14.5	13.5	14.5	16	16
L		25.5	25.5	31	39	42	46	48	50	53	53	65

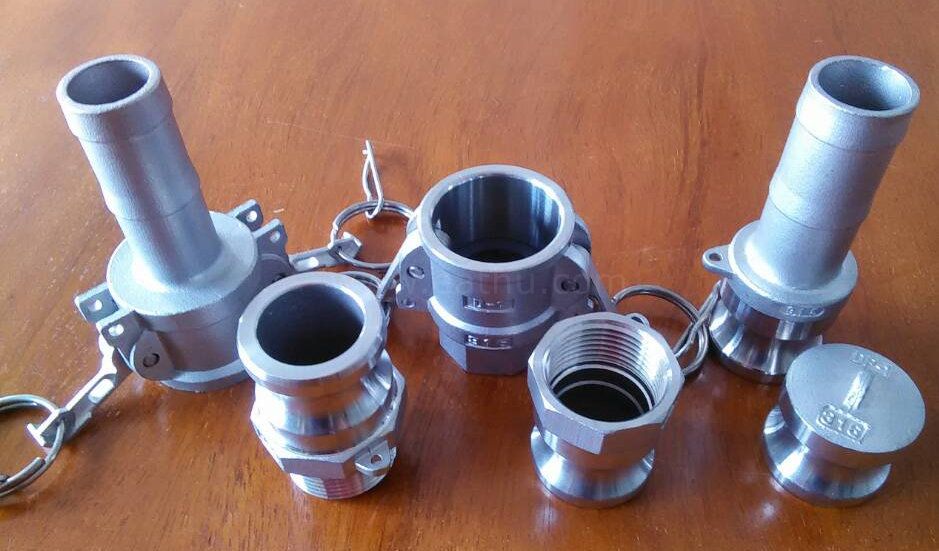

stainless steel Camlock fitting
