Stainless steel screwed REDUCED SOCKET BANDED
Size: 1/2" ,3/4", 1",125,150,2",3",4",5",6"
Pressure: 150lbs
Dimension: ISO4144
Material: SUS201, SUS304, SUS316, (SS201 SS304 SS316)
Thread end: NPT, FNPT, BSPT, BSP,G,DIN2999&BS21,ISO228/1&ISO7/1

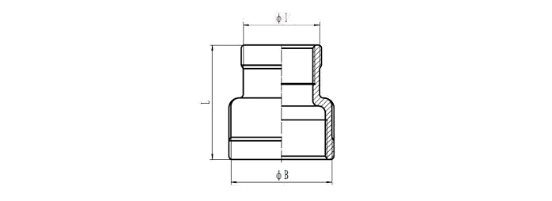

Reduced Socket Banded
A reduced socket banded is a type of pipe fitting that has a smaller diameter socket end and a larger diameter banded end. This design allows for easy installation and secure connection of pipes of different sizes. It is commonly used in plumbing and industrial applications where pipes of varying sizes need to be connected together.
| SIZE | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | ||||||||||||
| 1/8" | 1/8" | 1/4" | 1/4" | 3/8" | 1/4" | 3/8" | 1/2" | 1/2" | 3/4" | 1" | 3/4" | 1" | 1-1/4" | 1-1/4" | 1-1/2" | 1-1/2" | 2" | 2" | 2-1/2" | 2-1/2" | 3" | ||
| I | 13 | 13 | 16.5 | 16.5 | 20 | 16.5 | 20 | 24.5 | 24.5 | 30 | 30 | 37.5 | 30 | 37.5 | 46.5 | 46.5 | 53 | 53 | 65.5 | 65.5 | 82 | 82 | 95.5 |
| B | 16.5 | 20 | 24.5 | 30 | 37.5 | 46.5 | 53 | 65.5 | 81.5 | 95.5 | 121.5 | ||||||||||||
| L | 25 | 26 | 34 | 36 | 42 | 48 | 52 | 58 | 65 | 72 | 94 | ||||||||||||
