Size: 1/8"-4" threaded and weld type

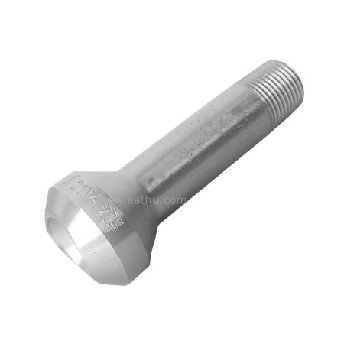

A nipple outlet is an outlet with a tail type.It is used to connect a pipe to a hose or other fitting. It typically has a threaded end that allows it to be screwed onto a pipe or other fittings, and a weld end that allows to be welded to the main pipe. Nipple outlets are commonly used in irrigation systems, water supply lines, and other applications where a secure connection between a pipe and a hose is needed.

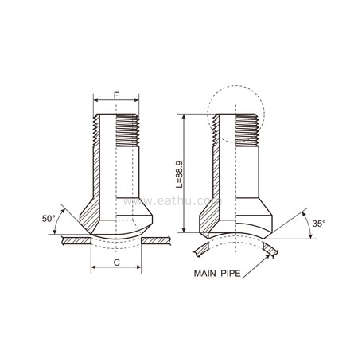

Nipple Outlet Dimension
Outlet Pipe | C | F | |
3000lb | 6000lb | ||
1/2" | 23.8 | 13.8 | 21.3 |
3/4" | 30.2 | 18.9 | 26.7 |
1" | 36.5 | 24.3 | 33.4 |
1-1/4" | 44.5 | 32.5 | 42.2 |
1-1/2" | 50.8 | 38.1 | 48.3 |
2" | 65.1 | 49.2 | 60.3 |
(1) Dimensions in Millimeters.
(2) Dimension B is minimum length of perfect thread. The length of useful thread(B plus threads with fully formed roots and flat crests)shall not be less than L2(effective length of external thread)required by American National Standard for Pipe Threads ANSI/ASME B1.20.1)
