Stainless steel 3way threaded ball valve
Size:1/4”-2”
Pressure:1.6Mpa-6.4Mpa
Body Materials:Stainless Steel ,CF8,CF8M
Ball Materials:Stainless Steel ,CF8,CF8M
Seal Materials:PTFE
Connection:thread (BSP,BSPT,NPT)
Drive type:handle
Structure type:floating
A 3-way threaded ball valve is a type of valve that has three openings or ports, allowing for the control of flow in multiple directions. These valves have a ball with a hole in the center that can be rotated to redirect flow between the different ports. They are commonly used in applications where fluid needs to be diverted or mixed, such as in industrial processes or plumbing systems. The threaded design allows for easy installation and removal, making them a popular choice for many different industries.

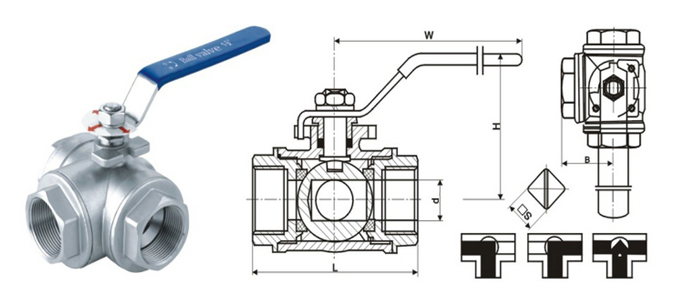

Dimensions:
| SIZE | DN | d | L | H | W | B | ISO5211 | S |
| 1/4’’ | 6 | 4.2 | 64 | 32 | 85 | 32 | F2 | -7 |
| 3/8’’ | 10 | 6 | 64 | 32 | 95 | 32 | F2 | -7 |
| 1/2’’ | 15 | 10 | 68 | 34 | 108 | 34 | F3 | -9 |
| 3/4’’ | 20 | 15 | 78 | 60 | 115 | 39 | F3 | -9 |
| 1’’ | 25 | 18 | 86 | 60 | 135 | 43 | F4 | -9 |
| 1 1/4’’ | 32 | 25 | 111 | 76 | 150 | 55.5 | F4 | -11 |
| 1 1/2’’ | 40 | 32 | 126 | 85 | 175 | 63 | F5 | -11 |
| 2’’ | 50 | 40 | 143 | 95 | 190 | 71.5 | F5 | -11 |
