Dimension of MSS SP-97 Socket welded outlet table reduced diameter 3000lbs and 6000lbs 2020/10/05 09:28:00

Dimension of MSS SP-97 Socket welded outlet table (reduced diameter) 3000lbs and 6000lbs

The base of the Sockolet is the same as the butt welding outlet(weldedolet), but the branch connection adopts socket welding connection. The pipeline pressure rating is usually 3000# and 6000#, and the pressure 9000# pipeline needs to be replaced with other welding methods.

Dimension of MSS SP-97 Socket welded outlet table reduced diameter 3000lbs

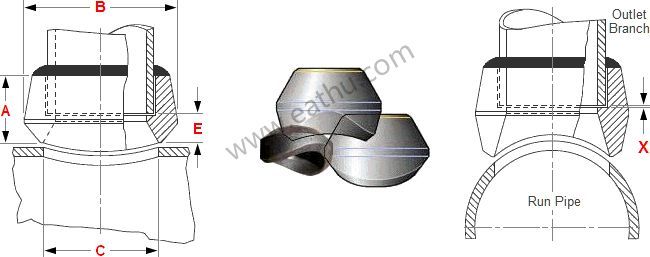

NPS		A	B	C	D	E
1/2	INCH	1	1.13/32	29/32	0.622	9/16
1/2	MM	25.4	35.71	23.01	15.8	14.28
3/4	INCH	1.1/16	1.23/32	1.5/32	0.824	9/16
3/4	MM	26.98	43.65	29.36	20.93	14.28
1	INCH	1.5/16	2	1.7/16	1.049	25/32
1	MM	33.33	50.8	36.51	26.64	19.84
1.1/4	INCH	1.5/16	2.9/16	1.3/4	1.38	3/4
1.1/4	MM	33.33	65.08	44.45	35.05	19.05
1.1/2	INCH	1.3/8	2.27/32	2	1.61	3/4
1.1/2	MM	34.92	72.23	50.8	40.89	19.05
2	INCH	1½	3.15/32	2.9/16	2.067	13/16
2	MM	38.1	88.1	65.08	52.5	20.63
2½	INCH	1.9/16	4.1/16	3	2.469	3/4
2½	MM	39.68	103.18	76.2	62.71	19.05
3	INCH	1.3/4	4.13/16	3.11/16	3.068	15/16
3	MM	44.45	122.23	93.66	77.93	23.81
3½	INCH	1.11/16	5.3/8	4.7/16	3.548	11/16
3½	MM	42.86	136.52	112.71	90.12	17.46
4	INCH	1.7/8	5.31/32	4.3/4	4.026	1.1/16
4	MM	47.62	151.6	120.65	102.26	26.98
5	INCH	2.5/8	7.5/16	5.9/16	5.047	1.11/32
5	MM	66.67	185.73	141.28	128.19	34.13
6	INCH	2.3/4	8.5/8	6.11/16	6.065	1.13/32
6	MM	69.85	219.07	169.86	154.05	35.71
				X = Min. 1/16 (1.6 mm)

Dimension of MSS SP-97 Socket welded outlet table (reduced diameter) 6000lbs

Dimension of MSS SP-97 Socket welded outlet table reduced diameter 6000lbs

NPS		A	B	C	D	E
1/2	INCH	1¼	1.23/32	3月4日	0.466	7/8
1/2	MM	31.75	43.65	19.05	11.84	22.22
3/4	INCH	1.7/16	1.61/64	1	0.614	7/8
3/4	MM	36.51	49.6	25.4	15.6	22.22
1	INCH	1.9/16	2.7/16	1.5/16	0.815	15/16
1	MM	39.68	61.91	33.33	20.7	23.81
1¼	INCH	1.5/8	2.23/32	1½	1.16	13/16
1¼	MM	41.27	69.05	38.1	29.46	20.63
1½	INCH	1.11/16	3¼	1.15/16	1.338	7/8
1½	MM	42.86	82.55	49.21	33.99	22.22
2	INCH	2.1/16	4.1/32	2.3/4	1.689	1.3/16
2	MM	52.38	102.39	69.85	42.9	30.16
				X = Min. 1/16 (1.6 mm)

X is the bottom gap of welding.

The socket welded size is according to ASME B16.11, and the design is according to MSS SP-97.

All China forged fitting manufacturer is make mold according to BONNEY FORGE or BOTH WELL.

•Sockolet® is a registered trademark, we all call this products as "Socket Weld Outlet"
