SP-97 welded outlet deminsions

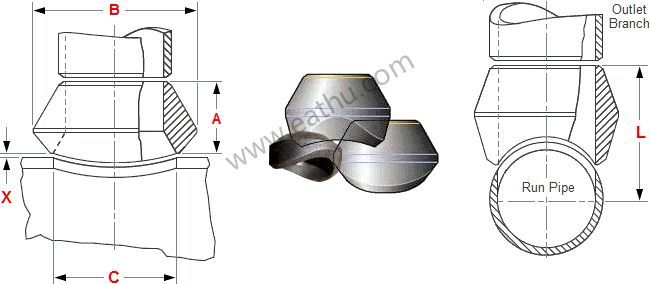

Dimension of butt-welded outlet MSS SP-97 STD pipe 2020/10/05 09:21:00

Dimension of butt-welded outlet MSS SP-97 STD pipe

Dimension of butt-welded outlet MSS SP-97 STD pipe

NPS		A	B	C	D
1/2	INCH	42433	1.3/8	15/16	42498
1/2	MM	19.05	34.93	23.81	15.88
3/4	INCH	42559	1.5/8	1.3/16	13/16
3/4	MM	22.23	41.28	30.16	20.64
1	INCH	1.1/16	2	1.7/16	1.1/32
1	MM	26.99	50.8	36.51	26.19
1.1/4	INCH	1.1/4	2.3/8	1.3/4	1.3/8
1.1/4	MM	31.75	60.3	44.45	34.93
1.1/2	INCH	1.5/16	2.7/8	2	1.5/8
1.1/2	MM	33.34	73	50.8	41.28
2	INCH	1.1/2	3.1/2	2.9/16	2.1/16
2	MM	38.1	88.9	65.09	52.39
2.1/2	INCH	1.5/8	4.1/16	3	2.7/16
2.1/2	MM	41.28	103.19	76.2	61.91
3	INCH	1.3/4	4.13/16	3.11/16	3.1/16
3	MM	44.45	122.24	93.66	77.79
3.1/2	INCH	2	5.3/8	3.7/8	3.9/16
3.1/2	MM	50.8	136.53	98.43	90.49
4	INCH	2	6	4.3/4	4
4	MM	50.8	152.4	120.65	101.6
5	INCH	2.1/4	7.1/8	5.9/16	5.1/16
5	MM	57.15	180.98	141.29	128.59
6	INCH	2.3/8	8.1/2	6.11/16	6.1/16
6	MM	60.3	215.9	169.86	153.99
8	INCH	2.3/4	10.3/8	8.11/16	7.15/16
8	MM	69.85	263.53	220.66	201.61
10	INCH	3.1/16	12.9/16	10.13/16	10
10	MM	77.79	319.09	274.64	254
12	INCH	3.3/8	14.7/8	12.13/16	12
12	MM	85.73	377.83	325.44	304.8
14	INCH	3.1/2	16.1/8	14.1/16	13.1/4
14	MM	88.9	409.58	357.19	336.55
16	INCH	3.11/16	18.1/4	16.1/16	15.1/4
16	MM	93.66	463.55	407.99	387.35
18	INCH	4.1/16	20.3/4	18.5/8	17.1/4
18	MM	103.19	527.05	473.08	438.15
20	INCH	4.5/8	23.1/16	20.1/16	19.1/4
20	MM	117.48	585.79	509.59	488.95
24	INCH	5.3/8	27.7/8	25.1/8	23.1/4
24	MM	136.53	708.03	638.18	590.55

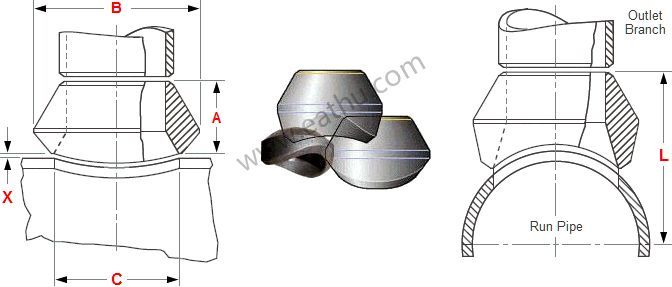

Dimension of butt-welded outlet reducer MSS SP-97 STD pipe

Dimension of butt-welded outlet reducer MSS SP-97 STD pipe

NPS		A	B	C
1/2	INCH	3/4	1.3/8	15/16
1/2	MM	19.05	34.93	23.81
3/4	INCH	7/8	1.3/4	1.3/16
3/4	MM	22.23	44.45	30.16
1	INCH	1.1/16	2.1/8	1.7/16
1	MM	26.99	53.98	36.51
1.1/4	INCH	1.1/4	2.9/16	1.3/4
1.1/4	MM	31.75	65.09	44.45
1.1/2	INCH	1.5/16	2.7/8	2
1.1/2	MM	33.34	73	50.8
2	INCH	1.1/2	3.1/2	2.9/16
2	MM	38.1	88.9	65.09
2.1/2	INCH	1.5/8	4.1/16	3
2.1/2	MM	41.28	103.19	76.2
3	INCH	1.3/4	4.13/16	3.11/16
3	MM	44.45	122.24	93.66
3.1/2	INCH	1.7/8	5.5/8	4
3.1/2	MM	47.63	142.88	101.6
4	INCH	2	6	4.3/4
4	MM	50.8	152.4	120.65
5	INCH	2.1/4	7.1/16	5.9/16
5	MM	57.15	179.39	141.29
6	INCH	2.3/8	8.1/2	6.11/16
6	MM	60.3	215.9	169.86
8	INCH	2.3/4	10.3/8	8.11/16
8	MM	69.85	263.53	220.66
10	INCH	3.1/16	12.11/16	10.13/16
10	MM	77.79	322.26	274.64
12	INCH	3.3/8	14.7/8	12.13/16
12	MM	85.73	377.83	325.44
14	INCH	3.1/2	16.1/8	14.1/16
14	MM	88.9	409.58	357.19
16	INCH	3.11/16	18.1/4	16.1/16
16	MM	93.66	463.55	407.99
18	INCH	3.13/16	20.1/2	18.1/16
18	MM	96.84	520.7	458.79
20	INCH	4	22.1/2	20
20	MM	101.6	571.5	508
24	INCH	4.9/16	27.1/8	24.3/16
24	MM	115.89	688.98	614.36

X is the bottom gap of welding.

The socket welded size is according to ASME B16.11, and the design is according to MSS SP-97.

All China forged fitting manufacturer is make mold according to BONNEY FORGE or BOTH WELL.

•Sockolet® is a registered trademark, we all call this products as "Socket Weld Outlet"
