Dimension of threaded outlet threadolt Class3000- MSS SP-97
The base of the Thredolet is the same as the weldedolet, but its branch connection uses threaded connections and does not require workers to weld. The threadedolet has two pressure levels of 3000lbs and 6000lbs, but Eathu recommend the socket welding process for 6000lbs pipes.

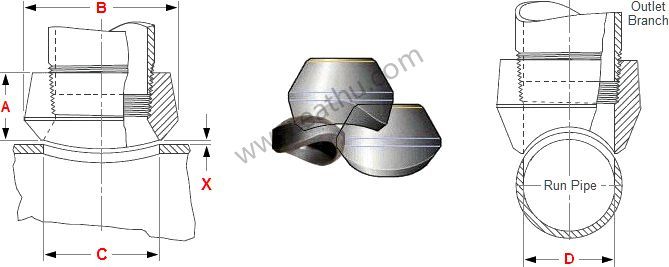

Dimension of threaded outlet threadolt Class3000- MSS SP-97 Class3000
| NPS | A | B | C | D | |
| 1/2 | INCH | 1 | 1.3/8 | 15/16 | 5/8 |
| MM | 25.4 | 34.92 | 23.81 | 15.87 | |
| 3/4 | INCH | 1.1/16 | 1.5/8 | 1.3/16 | 13/16 |
| MM | 26.98 | 41.27 | 30.16 | 20.63 | |
| 1 | INCH | 1.5/16 | 2 | 1.7/16 | 1.1/16 |
| MM | 33.33 | 50.8 | 36.51 | 26.98 | |
| 1¼ | INCH | 1.5/16 | 2.3/8 | 1.3/4 | 1.3/8 |
| MM | 33.33 | 60.32 | 44.45 | 34.92 | |
| 1½ | INCH | 1.3/8 | 2.7/8 | 2 | 1.5/8 |
| MM | 34.92 | 73.02 | 50.8 | 41.27 | |
| 2 | INCH | 1½ | 3½ | 2.9/16 | 2.1/16 |
| MM | 38.1 | 88.9 | 65.08 | 52.38 | |
| 2½ | INCH | 1.29/32 | 4.1/16 | 3 | 2½ |
| MM | 48.41 | 103.18 | 76.2 | 63.5 | |
| 3 | INCH | 2 | 4.13/16 | 3.11/16 | 3.1/16 |
| MM | 50.8 | 122.23 | 93.66 | 77.78 | |
| 3½ | INCH | 2.1/8 | 5.3/8 | 4.7/16 | 3.9/16 |
| MM | 53.97 | 136.52 | 112.71 | 90.48 | |
| 4 | INCH | 2¼ | 6.1/16 | 4.3/4 | 4.1/16 |
| MM | 57.15 | 153.98 | 120.65 | 103.18 | |
| 5 | INCH | 2.7/16 | 7¼ | 5¼ | 5¼ |
| MM | 61.91 | 184.15 | 133.35 | 133.35 | |
| 6 | INCH | 2.3/4 | 8.11/16 | 5.3/4 | 5.3/4 |
| MM | 69.85 | 220.66 | 146.05 | 146.05 |

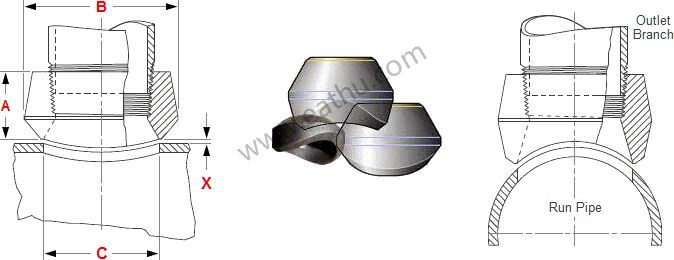

Dimension of threaded outlet threadolt reducer Class3000- MSS SP-97 Class3000
| NPS | A | B | C | |
| 1/2 | INCH | 1 | 1.13/32 | 15/16 |
| MM | 25.4 | 35.71 | 23.81 | |
| 3/4 | INCH | 1.1/16 | 1.23/32 | 1.5/32 |
| MM | 26.98 | 43.65 | 29.36 | |
| 1 | INCH | 1.5/16 | 2 | 1.7/16 |
| MM | 33.33 | 50.8 | 36.51 | |
| 1¼ | INCH | 1.5/16 | 2.9/16 | 1.3/4 |
| MM | 33.33 | 65.08 | 44.45 | |
| 1½ | INCH | 1.3/8 | 2.27/32 | 2 |
| MM | 34.92 | 72.23 | 50.8 | |
| 2 | INCH | 1½ | 3.15/32 | 2.9/16 |
| MM | 38.1 | 88.1 | 65.08 | |
| 2½ | INCH | 1.13/16 | 4.1/16 | 3 |
| MM | 46.03 | 103.18 | 76.2 | |
| 3 | INCH | 2 | 4.13/16 | 3.11/16 |
| MM | 50.8 | 122.23 | 93.66 | |
| 3½ | INCH | 2.1/8 | 5.7/32 | 4 |
| MM | 53.975 | 132.55 | 101.6 | |
| 4 | INCH | 2¼ | 5.31/32 | 4.3/4 |
| MM | 57.15 | 151.6 | 120.65 | |
| 5 | INCH | 2.5/8 | 7.5/16 | 5.9/16 |
| MM | 66.67 | 185.73 | 141.28 | |
| 6 | INCH | 2.3/4 | 8.5/8 | 6.11/16 |
| MM | 69.85 | 219.07 | 169.86 |
Dimension of threaded pipe outlet threadolt reducer Class6000- MSS SP-97 Class3000
| NPS | A | B | C | |
| 1/2 | INCH | 1¼ | 1.23/32 | 3/4 |
| MM | 31.75 | 43.65 | 19.05 | |
| 3/4 | INCH | 1.7/16 | 1.61/64 | 1 |
| MM | 36.51 | 49.6 | 25.4 | |
| 1 | INCH | 1.9/16 | 2.7/16 | 1.5/16 |
| MM | 39.68 | 61.91 | 33.33 | |
| 1¼ | INCH | 1.5/8 | 2.23/32 | 1½ |
| MM | 41.27 | 69.05 | 38.1 | |
| 1½ | INCH | 1.11/16 | 3¼ | 1.15/16 |
| MM | 42.86 | 82.55 | 49.21 | |
| 2 | INCH | 2.1/16 | 4.1/32 | 2.3/4 |
| MM | 52.38 | 102.39 | 69.85 |
X is the bottom gap of welding.
The socket welded size is according to ASME B16.11, and the design is according to MSS SP-97.
All China forged fitting manufacturer is make mold according to BONNEY FORGE or BOTH WELL.
•Sockolet® is a registered trademark, we all call this products as "Socket Weld Outlet"
Check more information about Eathu forged fittings
