Globe valves play a role in control systems by effectively managing flow and pressure levels across different industries such as oil and gas exploration and production activities.
The structure of a globe valve consists of a movable disk-type element and a stationary ring seat in a generally spherical body. When the valve is open, the fluid flows through an S-shaped path.
Straight pattern or Z-type globe valves are characterized by their Z-shaped passageway. This design is suitable for applications where minimal pressure drop is not a primary concern.
Angle pattern globe valves feature an inlet and outlet situated at a 90-degree angle, which proves advantageous, for scenarios necessitating a flow direction alteration in a piping network setup.
Globe valves, with a Y pattern design, are created to lessen pressure drop within the valve by aligning the seat with the flow direction providing resistance, and then pattern valves, while still allowing for effective control of flow rate.

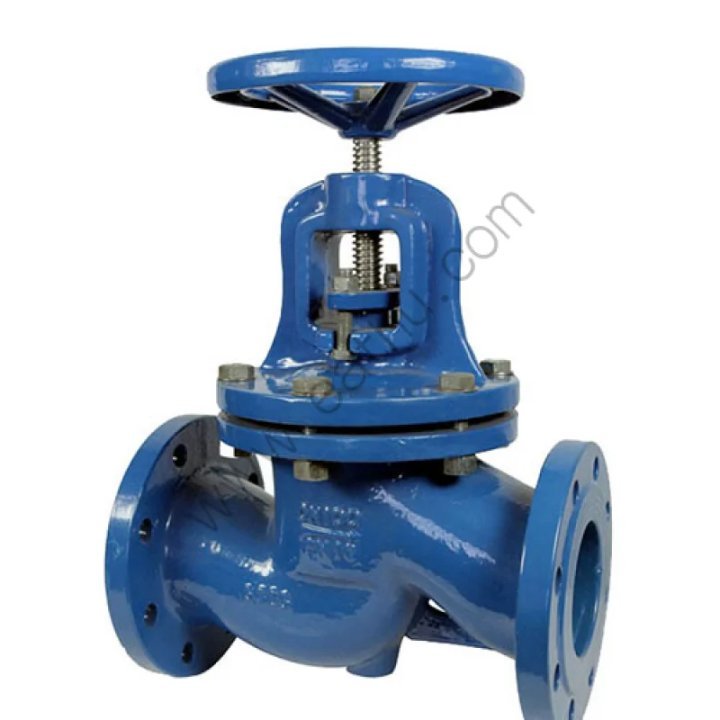

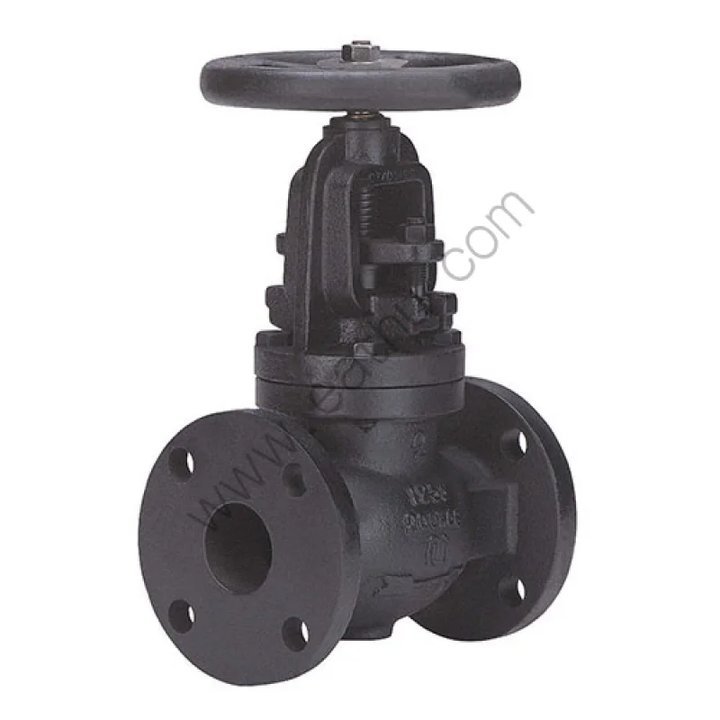

Material selection for globe valves depends on factors such as temperature, pressure, and fluid characteristics. Common materials include cast iron, stainless steel, bronze, and brass. For example, the BS5152 Cast Iron Globe Valve offers durability for general-purpose use, while the MSS SP-85 CLASS 125 Cast Iron Globe Valve provides enhanced performance under specific conditions.
Globe valves offer several advantages:
1. Precise Flow Control: Their design allows for accurate regulation of flow rates.
2. Excellent Shut-off Capabilities: They provide tight sealing when closed.
3. Versatility: Suitable for both on/off service and throttling applications.
4. Durability: Available in various materials to withstand different environmental conditions.
1. Pressure Drop: The tortuous path can cause significant pressure loss.
2. Larger Size: They require more space compared to other valve types.
3. Higher Cost: Generally more expensive due to complex construction.
4. Maintenance: More parts can lead to increased maintenance requirements.
If you're interested in delving into cutting-edge options for managing fluid systems check out FLUIDO for information on groundbreaking products tailored to various industrial requirements.
Globe valves are widely used in industries like oil and gas extraction, power generation, and water treatment. In the oil and gas sector , globe valves ensure secure transportation. Chemical factories depend on globe valves for chemical dosages to maintain process reliability.
Globe valves serve not only in industrial applications but also in situations that require precise control of flow rates. Steam applications for temperature regulation and HVAC systems for managing the flow of heating or cooling fluids to uphold ideal environmental settings effectively.
Regular inspection of globe valves is essential, focusing on parts like the disk and seat ring. Applying lubricants to components, prevents the stem seizing and jamming. Periodic valve testing ensures reliable operation across different pressure levels. Prompt replacement of worn parts helps avoid leaks and operational issues.
Leaks might be due to a worn-out seating ring or disk replacing these parts usually solves the problem. If a valve is hard to operate you can check for blockages or issues with lubrication to make it work smoothly again. Loud noises usually mean there's turbulence in the valve. Check the parts for alignment or damage to fix this issue.
When choosing a globe valve for a use case or scenario
1. Flow Requirements: Determine whether precise throttling or simple on/off control is needed.
2. Pressure Rating: Ensure the valve can withstand system pressures without compromising performance.
3. Temperature Range: Choose materials that can handle operating temperatures without degradation.
4. Valve Size: Match the valve size with pipeline dimensions for seamless integration.
For material selection, prioritize corrosion resistance and temperature tolerance. Also, consider durability, with cast iron being suitable for non-corrosive environments but not for highly acidic conditions.
Following industry guidelines guarantees, like API for design, ASME B16 for dimensions, and ISO for quality management, that globe valves fulfill safety requirements and perform reliably.
For those seeking high-quality products like BS5152 Cast Iron Globe Valve or MSS SP-85 CLASS 125 Cast Iron Globe Valve, exploring specialized suppliers provides access to reliable solutions tailored to industry needs.
