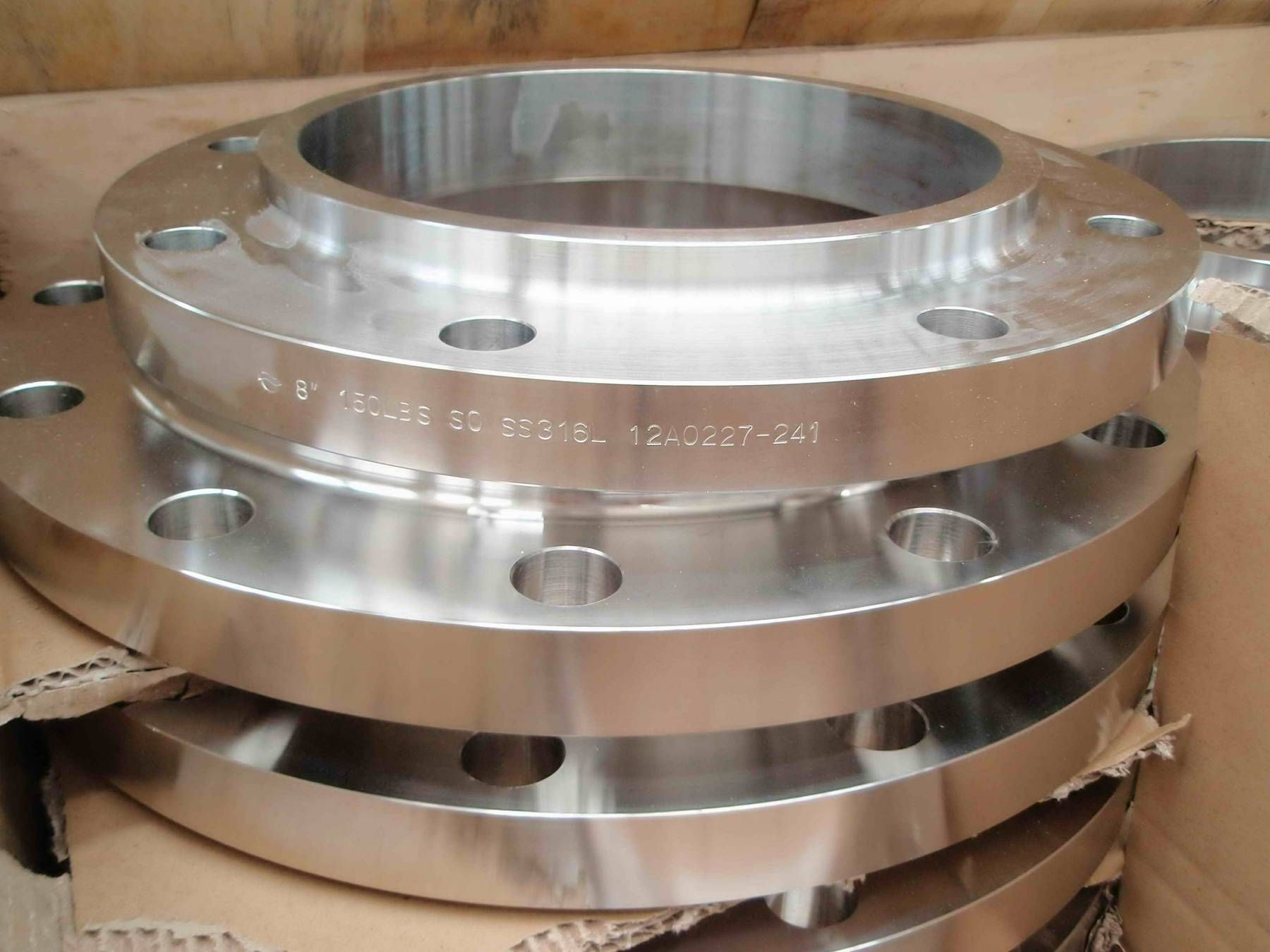

EN1092-1 flange is the European standard flange. It can also be written as BS EN1092-1. It is the same as DIN flange in some dimensions, materials and pressure requirements, and has a difference in connection form. It is different from the HG/T or GB which used in China but most standard parameters are interchangeable. You can download these flange standards in PDF format in the TECH AND PRICE LIST of the Fluido website, or contact us for a quote. The website is www.eathu.com and contact email is info@eathu.com. After your contact, we will arrange for a salesperson to respond to your message.

EN1092-1 standard flange sealing surface types are Typ 01 Typ 02 Typ 05 Typ 11 Typ 12 Typ 13; EN1092-1 standard flange material is 1.4301 1.4307 1.4401 1.4404 1.0565 1.0038 1.0352; EN1092-1 standard flange surface The treatment method is usually anti-rust oil or galvanizing, but there are also customers who need to paint or dacromet surface, which should be determined according to the actual working environment; EN1092-1 standard flange pressure grades are PN6 PN10 PN16 PN25 PN40; EN1092- 1 The standard flange size is DN15-DN600. For larger sizes, other European flange standards should be used. For details, you can contact Fluido to recommend standards. Now let's talk about the unit weight of EN1092-1 flange.

The unit weight list for Eathu EN 1092-1 forged flange

The unit weight list for EN 1092-1 forged flange PN2.5

DN	Type 01	Type 05	Type 11	Type 35	Type 36	Type 37
10	0.356	0.38	0.353	0.08	0.05	0.02
15	0.402	0.438	0.408	0.09	0.06	0.03
20	0.592	0.657	0.621	0.17	0.1	0.06
25	0.719	0.821	0.762	0.26	0.15	0.08
32	1.16	1.18	1.11	0.36	0.26	0.1
40	1.35	1.39	1.26	0.45	0.31	0.13
50	1.48	1.62	1.43	0.53	0.36	0.18
65	1.86	2.14	1.77	0.7	0.47	0.24
80	2.95	3.43	2.88	1	0.57	0.42
100	3.26	4.22	3.41	1.3	0.73	0.49
125	4.32	6.1	4.65	1.9	1.2	0.62
150	4.76	7.51	5.5	2.4	1.4	0.71
200	6.88	12.3	8.6	3.9	2.03	1.1
250	8.92	18.5	11.7	5.8	2.65	–
300	11.9	25.5	15.3	6.8	3.12	–
350	16.8	31.8	20.3	9.5	4	–
400	19.8	38.5	23.1	11.6	4.73	–
450	24.6	51.2	27	15	5.3	–
500	26.4	60.1	30.8	15.9	6.1	–
600	34.8	103	44	23	–	–
700	–	178	53.7	30.9	–	–
800	–	252	64.4	41.5	–	–
900	–	336	79.2	50	–	–
1000	–	435	98.6	58.9	–	–
1200	–	574	104	56.3	–	–
1400	–	–	133	–	–	–
1600	–	–	188	–	–	–
1800	–	–	215	–	–	–
2000	–	–	260	–	–	–
2200	–	–	332	–	–	–
2400	–	–	392	–	–	–
2600	–	–	497	–	–	–
2800	–	–	668	–	–	–
3000	–	–	772	–	–	–
3200	–	–	869	–	–	–
3400	–	–	988	–	–	–
3600	–	–	1156	–	–	–
3800	–	–	1309	–	–	–
4000	–	–	1441	–	–	–

The unit weight list for EN 1092-1 forged flange PN6

DN	Type 01	Type 02	Type 05	Type 11	Type 12	Type 32	Type 35	Type 36	Type 37
10	0.356	0.345	0.38	0.353	0.326	0.056	0.08	0.05	0.02
15	0.402	0.388	0.438	0.408	0.373	0.069	0.09	0.06	0.03
20	0.592	0.568	0.657	0.621	0.584	0.108	0.17	0.1	0.06
25	0.719	0.688	0.821	0.762	0.729	0.149	0.26	0.15	0.08
32	1.16	1.12	1.18	1.11	1.04	0.185	0.36	0.26	0.1
40	1.35	1.29	1.39	1.26	1.2	0.244	0.45	0.31	0.13
50	1.48	1.42	1.62	1.43	1.34	0.319	0.53	0.36	0.18
65	1.86	1.76	2.14	1.77	1.83	0.451	0.7	0.47	0.24
80	2.95	2.84	3.43	2.88	2.75	0.606	1	0.57	0.42
100	3.26	3.1	4.22	3.41	3.01	0.729	1.3	0.73	0.49
125	4.32	4.12	6.1	4.65	4.3	1	1.9	1.2	0.62
150	4.76	4.53	7.51	5.5	4.63	1.01	2.4	1.4	0.71
200	6.88	6.51	12.3	8.6	6.97	1.73	3.9	2.03	1.1
250	8.92	8.32	18.5	11.7	9.13	2.32	5.8	2.65	–
300	11.9	11.1	25.5	15.3	12.4	2.88	6.8	3.12	–
350	16.8	15.9	31.8	20.3	–	4.77	9.5	4	–
400	19.8	18.8	38.5	23.1	–	5.83	11.6	4.73	–
450	24.6	23.3	51.2	27	–	7.02	15	5.3	–
500	26.4	24.9	60.1	30.8	–	8.3	15.9	6.1	–
600	34.8	33	103	44	–	9.34	23	–	–
700	–	–	178	53.7	–	–	30.9	–	–
800	–	–	252	64.4	–	–	41.5	–	–
900	–	–	336	79.2	–	–	50	–	–
1000	–	–	435	98.6	–	–	58.9	–	–
1200	–	–	717	152	–	–	93.2	–	–
1400	–	–	1094	246	–	–	–	–	–
1600	–	–	1545	309	–	–	–	–	–
1800	–	–	2131	400	–	–	–	–	–
2000	–	–	2862	516	–	–	–	–	–
2200	–	–	–	645	–	–	–	–	–
2400	–	–	–	786	–	–	–	–	–
2600	–	–	–	1021	–	–	–	–	–
2800	–	–	–	1256	–	–	–	–	–
3000	–	–	–	1404	–	–	–	–	–
3200	–	–	–	1617	–	–	–	–	–
3400	–	–	–	1877	–	–	–	–	–
3600	–	–	–	2366	–	–	–	–	–

The unit weight list for EN 1092-1 forged flange PN10

DN	Type 01	Type 02	Type 04	Type 05	Type 11	Type 12	Type 32	Type 34	Type 35	Type 36
10	0.604	0.591	0.549	0.722	0.678	0.646	0.094	0.148	0.08	0.05
15	0.67	0.654	0.606	0.813	0.768	0.722	0.114	0.189	0.09	0.06
20	0.936	0.909	0.836	1.14	1.09	1.04	0.225	0.34	0.17	0.1
25	1.11	1.08	0.99	1.38	1.3	1.25	0.296	0.444	0.26	0.15
32	1.82	1.77	1.65	2.03	1.91	1.81	0.362	0.572	0.36	0.26
40	2.08	2.02	1.85	2.35	2.15	2.06	0.457	0.734	0.45	0.31
50	2.73	2.52	2.34	2.88	2.53	2.39	0.653	0.974	0.53	0.36
65	3.16	3.05	2.76	3.51	3.03	2.97	0.876	1.29	0.7	0.47
80	3.6	3.48	3.17	4.61	3.92	3.78	1.07	1.67	1	0.57
100	4.39	4.2	3.78	5.65	4.62	4.38	1.28	2.12	1.3	0.73
125	5.41	5.21	4.57	8.13	6.3	6.07	1.7	2.88	1.9	1.2
150	7.14	6.89	6.22	10.5	7.81	7.24	1.96	3.46	2.4	1.4
200	9.27	8.87	7.9	16.5	11.6	10.1	2.81	5.49	3.9	2.03
250	11.8	11.2	9.99	24.1	15.8	12.8	3.52	7.53	5.8	2.65
300	13.6	12.8	11.1	30.8	18.3	14.5	4.02	9.11	6.8	3.12
350	20.4	19.4	14.7	39.6	25.3	22.7	7.55	14.1	9.5	4
400	27.5	26.4	20.5	49.4	30.6	28	9.38	17.8	11.6	4.73
450	33.6	32.2	25.5	63	35.1	32.3	10.3	19.6	15	–
500	40.2	38.5	30.7	75.2	40.5	38.7	12.6	23.7	15.9	–
600	54.5	52.2	43	124	52.9	48.9	14.3	28.9	23	–
700	–	79.4		183	75.8	–	–		30.9	–
800	–	112		297	102	–	–		41.5	–
900	–	135		374	121	–	–		50	–
1000	–	180		492	161	–	–		58.9	–
1200	–	278		842	258	–	–		93.2	–
1400	–	–		–	371	–	–		–	–
1600	–	–		–	547	–	–		–	–
1800	–	–		–	691	–	–		–	–
2000	–	–		–	830	–	–		–	–
2200	–	–		–	1073	–	–		–	–
2400	–	–		–	1329	–	–		–	–
2600	–	–		–	1574	–	–		–	–
2800	–	–		–	1987	–	–		–	–
3000	–	–		–	2476	–	–		–	–

The unit weight list for EN 1092-1 forged flange PN16

DN	Type 01	Type 02	Type 04	Type 05	Type 11	Type 12	Type 32	Type 34	Type 35	Type 36
10	0.604	0.591	0.549	0.722	0.678	0.646	0.094	0.148	0.08	0.05
15	0.67	0.654	0.606	0.813	0.768	0.722	0.114	0.189	0.09	0.06
20	0.936	0.909	0.836	1.14	1.09	1.04	0.225	0.34	0.17	0.1
25	1.11	1.08	0.99	1.38	1.3	1.25	0.296	0.444	0.26	0.15
32	1.82	1.77	1.65	2.03	1.91	1.81	0.362	0.572	0.36	0.26
40	2.08	2.02	1.85	2.35	2.15	2.06	0.457	0.734	0.45	0.31
50	2.73	2.52	2.34	2.88	2.53	2.39	0.653	0.974	0.53	0.36
65	3.16	3.05	2.76	3.51	3.03	2.97	0.876	1.29	0.7	0.47
80	3.6	3.48	3.17	4.61	3.92	3.78	1.07	1.67	1	0.57
100	4.39	4.2	3.78	5.65	4.62	4.38	1.28	2.12	1.3	0.73
125	5.41	5.21	4.57	8.13	6.3	6.07	1.7	2.88	1.9	1.2
150	7.14	6.89	6.22	10.5	7.81	7.24	1.96	3.46	2.4	1.4
200	9.73	9.31	8.37	16.2	11.5	10.1	2.81	5.55	3.9	2.03
250	14.2	13.5	12.4	25	16.7	12.8	3.52	7.71	5.8	–
300	19	18	16.3	35.1	22.1	14.5	4.02	11.4	9.5	–
350	28.2	27	21.5	48	32.8	22.7	7.55	19.2	15.2	–
400	35.9	34.6	27.1	63.5	41.1	28	9.38	23.7	18.7	–
450	46.1	44.6	36.7	96.6	50.6	32.3	10.3	28.2	24.4	–
500	64	62	51.1	133	66.2	38.7	12.6	35.5	29.1	–
600	102	98.8	78.3	226	104	48.9	14.3	47.9	40.3	–
700	–	107	–	285	96.5	–	–	–	45.2	–
800	–	152	–	388	122	–	–	–	59.9	–
900	–	184	–	483	155	–	–	–	75.6	–
1000	–	257	–	640	233	–	–	–	106.46	–
1200	–	–	–	–	390	–	–	–	–	–
1400	–	–	–	–	495	–	–	–	–	–
1600	–	–	–	–	760	–	–	–	–	–
1800	–	–	–	–	929	–	–	–	–	–
2000	–	–	–	–	1185	–	–	–	–	–

The unit weight list for EN 1092-1 forged flange PN25

DN	Type 01	Type 02	Type 04	Type 05	Type 11	Type 12	Type 32	Type 34	Type 35
10	0.604	0.591	0.549	0.722	0.678	0.646	0.094	0.148	0.08
15	0.67	0.654	0.606	0.813	0.768	0.722	0.114	0.189	0.09
20	0.936	0.909	0.836	1.14	1.09	1.04	0.225	0.34	0.17
25	1.11	1.08	0.99	1.38	1.3	1.25	0.296	0.444	0.26
32	1.82	1.77	1.65	2.03	1.91	1.81	0.362	0.572	0.36
40	2.08	2.02	1.85	2.35	2.15	2.06	0.457	0.734	0.45
50	2.73	2.65	2.47	3.2	2.85	2.74	0.653	1.02	0.69
65	3.48	3.36	3.04	4.29	3.68	3.65	0.876	1.36	1.1
80	4.32	4.18	3.61	5.54	4.78	4.59	1.2	1.9	1.6
100	6.07	5.87	5.18	7.6	6.46	6.1	1.58	2.77	2.4
125	8.19	7.95	6.89	10.8	8.86	8.22	2.08	3.78	3.2
150	10.3	9.97	8.69	14.6	11.7	10.6	2.73	5.25	4.6
200	17.9	17.4	14.9	28.8	21	18.3	5.55	10.2	8.8
250	29.3	28.4	23.8	44.4	34.2	28.3	7.87	16.4	14.4
300	45.1	43.6	36	64.2	47.6	40.4	12.8	25.4	20.7
350	66.7	64.9	50.4	89.5	69.3	58.8	19.3	37.8	30.7
400	97.1	95.1	75.5	127	98	82.1	30.4	56.4	45.4
450	–	–	–	154	105	86.2	28.4	56.4	–
500	–	–	–	188	130	105	35.3	72.9	–
600	–	–	–	331	209	172	53.3	106	–

The unit weight list for EN 1092-1 forged flange PN40

DN	Type 01	Type 02	Type 04	Type 05	Type 11	Type 12	Type 32	Type 34	Type 35
10	0.604	0.591	0.549	0.722	0.678	0.646	0.094	0.148	0.08
15	0.67	0.654	0.606	0.813	0.768	0.722	0.114	0.189	0.09
20	0.936	0.909	0.836	1.14	1.09	1.04	0.225	0.34	0.17
25	1.11	1.08	0.99	1.38	1.3	1.25	0.296	0.444	0.26
32	1.82	1.77	1.65	2.03	1.91	1.81	0.362	0.572	0.36
40	2.08	2.02	1.85	2.35	2.15	2.06	0.457	0.734	0.45
50	2.73	2.65	2.47	3.2	2.85	2.74	0.653	1.02	0.69
65	3.48	3.36	3.04	4.29	3.68	3.65	0.876	1.36	1.1
80	4.32	4.18	3.61	5.54	4.78	4.59	1.2	1.9	1.6
100	6.07	5.87	5.18	7.6	6.46	6.1	1.58	2.77	2.4
125	8.19	7.95	6.89	10.8	8.86	8.22	2.08	3.78	3.2
150	10.3	9.97	8.69	14.6	11.7	10.6	2.73	5.25	4.6
200	17.9	17.4	14.9	28.8	21	18.3	5.55	10.2	8.8
250	29.3	28.4	23.8	44.4	34.2	28.3	7.87	16.4	14.4
300	45.1	43.6	36	64.2	47.6	40.4	12.8	25.4	20.7
350	66.7	64.9	50.4	89.5	69.3	58.8	19.3	37.8	30.7
400	97.1	95.1	75.5	127	98	82.1	30.4	56.4	45.4
450	–	–	–	154	105	86.2	28.4	56.4	–
500	–	–	–	188	130	105	35.3	72.9	–
600	–	–	–	331	209	172	53.3	106	–

The unit weight list for EN 1092-1 forged flange PN63

DN	Type 01	Type 05	Type 11	Type 12
50	4.99	4.52	4.51	4.2
65	4.73	5.69	5.58	5.3
80	5.9	6.89	6.68	6.25
100	8.05	10	9.27	8.81
125	11.7	15.9	14.5	13.6
150	16.9	23.3	21.4	19.5
200	30.5	39.2	34.1	–
250	42.1	56.7	48.3	–
300	59.1	81.2	67.5	–
350	88.7	113	97.8	–
400	121	152	129	–

The unit weight list for EN 1092-1 forged flange PN100

DN	Type 01	Type 05	Type 11	Type 12
10	1	1.04	1.09	1.07
15	1.1	1.16	1.2	1.17
20	1.86	1.97	2.02	1.96
25	2.37	2.54	2.63	2.49
32	2.79	3.07	3.2	2.95
40	3.58	3.97	4.07	3.8
50	4.99	5.64	5.82	5.28
65	6.33	7.44	7.57	6.84
80	7.72	8.85	8.82	7.94
100	10.3	13.3	13.1	11.5
125	17.2	21.3	21	17.9
150	23.6	29.4	28.3	23.8
200	42.9	52.7	50.2	–
250	69	85.4	81.4	–
300	104	128	118	–
350	150	175	169	–

The unit weight list for EN 1092-1 forged flange PN160 PN250 PN320 PN400

DN	Type 11	Type 11	Type 11	Type 11
10	1.1	–	2.14	2.55
15	1.2	2.51	2.53	3.62
25	2.64	3.58	5.18	7.45
40	4.42	6.72	8.65	14.1
50	6.38	8.22	10.7	16.7
65	8.75	12.8	19.5	31.6
80	10.3	16.5	25.2	38.4
100	15.3	27.2	42.5	67.3
125	24.4	39	63.6	94.5
150	34.4	59.6	91.5	145
200	60.7	110	172	270
250	97.6	190	312

For more information please check fluido forged flange
