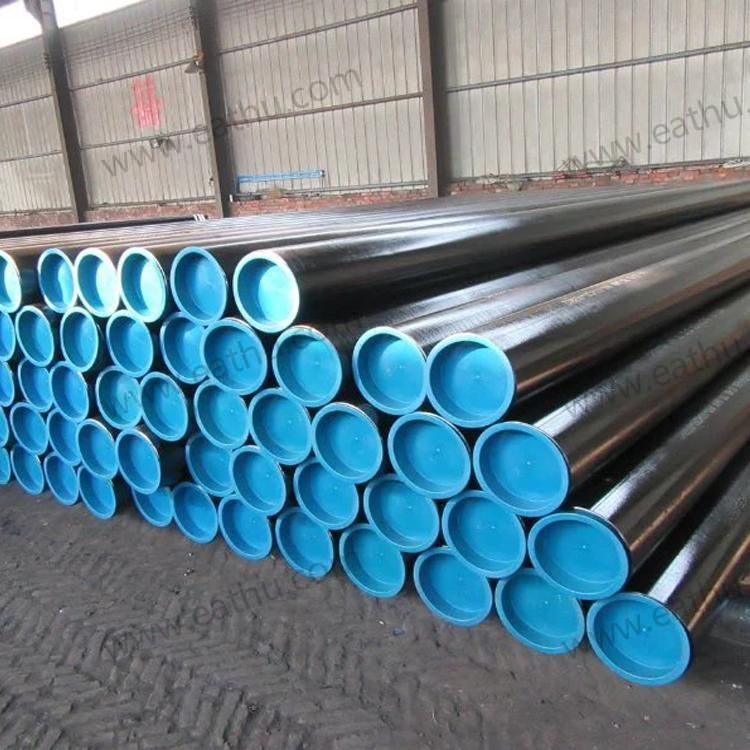

ASME B36.10 Carbon steel and alloy steel pipe outer diameter wall thickness and unit weight per meter
| DN | NPS | OD | SCH5 | SCH10 | SCH20 | SCH30 | STD | SCH40 | SCH60 | XS | SCH80 | SCH100 | SCH120 | SCH140 | SCH160 | XXS | |
| 6 | 1/8 | 10.3 | mm | - | 1.24 | - | 1.45 | 1.73 | 1.73 | - | 2.41 | 2.41 | - | - | - | - | - |
| kg | - | 0.28 | - | 0.32 | 0.37 | 0.37 | - | 0.47 | 0.47 | - | - | - | - | - | |||
| 8 | 1/4 | 13.7 | mm | - | 1.65 | - | 1.85 | 2.24 | 2.24 | - | 3.02 | 3.02 | - | - | - | - | - |
| kg | - | 0.49 | - | 0.54 | 0.63 | 0.63 | - | 0.8 | 0.8 | - | - | - | - | - | |||
| 10 | 3/8 | 17.1 | mm | - | 1.65 | - | 1.85 | 2.31 | 2.31 | - | 3.2 | 3.2 | - | - | - | - | - |
| kg | - | 0.63 | - | 0.7 | 0.84 | 0.84 | - | 1.1 | 1.1 | - | - | - | - | - | |||
| 15 | 1/2 | 21.3 | mm | 1.65 | 2.11 | - | 2.41 | 2.77 | 2.77 | - | 3.73 | 3.73 | - | - | - | 4.78 | 7.47 |
| kg | 0.8 | 1 | - | 1.12 | 1.27 | 1.27 | - | 1.62 | 1.62 | - | - | - | 1.95 | 2.55 | |||
| 20 | 3/4 | 26.7 | mm | 1.65 | 2.11 | - | 2.41 | 2.87 | 2.87 | - | 3.91 | 3.91 | - | - | - | 5.56 | 7.82 |
| kg | 1.03 | 1.28 | - | 1.44 | 1.69 | 1.69 | - | 2.2 | 2.2 | - | - | - | 2.9 | 3.64 | |||
| 25 | 1 | 33.4 | mm | 1.65 | 2.77 | - | 2.9 | 3.38 | 3.38 | - | 4.55 | 4.55 | - | - | - | 6.35 | 9.09 |
| kg | 1.29 | 2.09 | - | 2.18 | 2.5 | 2.5 | - | 3.24 | 3.24 | - | - | - | 4.24 | 5.45 | |||
| 32 | 1 ¼ | 42.2 | mm | 1.65 | 2.77 | - | 2.97 | 3.56 | 3.56 | - | 4.85 | 4.85 | - | - | - | 6.35 | 9.7 |
| kg | 1.65 | 2.69 | - | 2.87 | 3.39 | 3.39 | - | 4.47 | 4.47 | - | - | - | 5.61 | 7.77 | |||
| 40 | 1 ½ | 48.3 | mm | 1.65 | 2.77 | - | 3.18 | 3.68 | 3.68 | - | 5.08 | 5.08 | - | - | - | 7.14 | 10.15 |
| kg | 1.9 | 3.11 | - | 3.54 | 4.05 | 4.05 | - | 5.41 | 5.41 | - | - | - | 7.25 | 9.56 | |||
| 50 | 2 | 60.3 | mm | 1.65 | 2.77 | - | 3.18 | 3.91 | 3.91 | - | 5.54 | 5.54 | - | - | - | 8.74 | 11.07 |
| kg | 2.39 | 3.93 | - | 4.48 | 5.44 | 5.44 | - | 7.48 | 7.48 | - | - | - | 11.11 | 13.44 | |||
| 65 | 2 ½ | 73 | mm | 2.11 | 3.05 | - | 4.78 | 5.16 | 5.16 | - | 7.01 | 7.01 | - | - | - | 9.53 | 14.02 |
| kg | 3.75 | 5.26 | - | 8.04 | 8.63 | 8.63 | - | 11.41 | 11.41 | - | - | - | 14.92 | 20.39 | |||
| 80 | 3 | 88.9 | mm | 2.11 | 3.05 | - | 4.78 | 5.49 | 5.49 | - | 7.62 | 7.62 | - | - | - | 11.13 | 15.24 |
| kg | 4.52 | 6.46 | - | 9.92 | 11.29 | 11.29 | - | 15.27 | 15.27 | - | - | - | 21.35 | 27.68 | |||
| 90 | 3 ½ | 101.6 | mm | 2.11 | 3.05 | - | 4.78 | 5.74 | 5.74 | - | 8.08 | 8.08 | - | - | - | - | - |
| kg | 5.18 | 7.41 | - | 11.41 | 13.57 | 13.57 | - | 18.63 | 18.63 | - | - | - | - | - | |||
| 100 | 4 | 114.3 | mm | 2.11 | 3.05 | - | 4.78 | 6.02 | 6.02 | - | 8.56 | 8.56 | - | 11.13 | - | 13.49 | 17.12 |
| kg | 5.84 | 8.37 | - | 12.91 | 16.07 | 16.07 | - | 22.32 | 22.32 | - | 28.32 | - | 33.54 | 41.03 | |||
| 125 | 5 | 141.3 | mm | 2.77 | 3.4 | - | - | 6.55 | 6.55 | - | 9.53 | 9.53 | - | 12.7 | - | 15.88 | 19.05 |
| kg | 9.46 | 11.56 | - | - | 21.77 | 21.77 | - | 30.97 | 30.97 | - | 40.28 | - | 49.11 | 57.43 | |||
| 150 | 6 | 168.3 | mm | 2.77 | 3.4 | - | - | 7.11 | 7.11 | - | 10.97 | 10.97 | - | 14.27 | - | 18.26 | 21.95 |
| kg | 11.31 | 13.83 | - | - | 28.26 | 28.26 | - | 42.56 | 42.56 | - | 54.2 | - | 67.56 | 79.22 | |||
| 200 | 8 | 219.1 | mm | 2.77 | 3.76 | 6.35 | 7.04 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 15.09 | 18.26 | 20.62 | 23.01 | 22.23 |
| kg | 14.78 | 19.97 | 33.31 | 36.81 | 42.55 | 42.55 | 53.08 | 64.64 | 64.64 | 75.92 | 90.44 | 100.9 | 111.2 | 107.9 | |||
| 250 | 10 | 273.1 | mm | 3.4 | 4.19 | 6.35 | 7.8 | 9.27 | 9.27 | 12.7 | 12.7 | 15.09 | 18.26 | 21.44 | 25.4 | 28.58 | 25.4 |
| kg | 22.61 | 27.77 | 41.77 | 51.03 | 60.31 | 60.31 | 81.55 | 81.55 | 96.01 | 114.7 | 133 | 155.1 | 172.3 | 155.1 | |||
| 300 | 12 | 323.9 | mm | 3.96 | 4.57 | 6.35 | 8.38 | 9.53 | 10.31 | 14.27 | 12.7 | 17.48 | 21.44 | 25.4 | 28.58 | 33.32 | 25.4 |
| kg | 31.24 | 35.98 | 49.73 | 65.2 | 73.88 | 79.73 | 108.9 | 97.46 | 132 | 159.9 | 186.9 | 208.1 | 238.7 | 186.9 | |||
| 350 | 14 | 355.6 | mm | 3.96 | 6.35 | 7.92 | 9.53 | 9.53 | 11.13 | 15.09 | 12.7 | 19.05 | 23.83 | 27.79 | 31.75 | 35.71 | - |
| kg | 34.34 | 54.69 | 67.9 | 81.33 | 81.33 | 94.55 | 126.7 | 107.3 | 158.1 | 194.9 | 224.6 | 253.5 | 281.7 | - | |||
| 400 | 16 | 406.4 | mm | 4.19 | 6.35 | 7.92 | 9.53 | 9.53 | 12.7 | 16.66 | 12.7 | 21.44 | 26.19 | 30.96 | 36.53 | 40.49 | - |
| kg | 41.56 | 62.64 | 77.83 | 93.27 | 93.27 | 123.3 | 160.1 | 123.3 | 203.5 | 245.5 | 286.6 | 333.1 | 365.3 | - | |||
| 450 | 18 | 457.2 | mm | 4.19 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.7 | 23.83 | 29.36 | 34.93 | 39.67 | 45.24 | - |
| kg | 46.79 | 70.57 | 87.71 | 122.3 | 105.1 | 155.8 | 205.7 | 139.1 | 254.5 | 309.6 | 363.5 | 408.2 | 459.3 | - | |||
| 500 | 20 | 508 | mm | 4.78 | 6.35 | 9.53 | 12.7 | 9.53 | 15.09 | 20.62 | 12.7 | 26.19 | 32.54 | 38.1 | 44.45 | 50.01 | - |
| kg | 59.32 | 78.55 | 117.1 | 155.1 | 117.1 | 183.4 | 247.8 | 155.1 | 311.1 | 381.5 | 441.4 | 508.1 | 664.8 | - | |||
| 550 | 22 | 559 | mm | 4.78 | 6.35 | 9.53 | 12.7 | 9.53 | - | 22.23 | 12.7 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | - |
| kg | 65.33 | 86.54 | 129.1 | 171 | 129.1 | - | 294.2 | 171 | 373.8 | 451.4 | 527 | 600.6 | 672.2 | - | |||
| 600 | 24 | 610 | mm | 5.54 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 24.61 | 12.7 | 30.96 | 38.89 | 46.02 | 52.37 | 59.54 | - |
| kg | 82.58 | 94.53 | 141.1 | 209.6 | 141.1 | 255.4 | 355.2 | 187 | 442 | 547.7 | 640 | 720.1 | 808.2 | - | |||
| 650 | 26 | 660 | mm | - | 7.92 | 12.7 | - | 9.53 | - | - | 12.7 | - | - | - | - | - | - |
| kg | - | 127.3 | 202.7 | - | 152.8 | - | - | 202.7 | - | - | - | - | - | - | |||
| 700 | 28 | 711 | mm | - | 7.92 | 12.7 | 15.88 | 9.53 | - | - | 12.7 | - | - | - | - | - | - |
| kg | - | 137.3 | 218.6 | 271.2 | 164.8 | - | - | 218.6 | - | - | - | - | - | - | |||
| 750 | 30 | 762 | mm | 6.35 | 7.92 | 12.7 | 15.88 | 9.53 | - | - | 12.7 | - | - | - | - | - | - |
| kg | 118.34 | 147.2 | 234.6 | 291.1 | 176.8 | - | - | 234.6 | - | - | - | - | - | - | |||
| 800 | 32 | 813 | mm | - | 7.92 | 12.7 | 15.88 | 9.53 | 17.48 | - | 12.7 | - | - | - | - | - | - |
| kg | - | 157.2 | 250.6 | 312.1 | 188.8 | 342.9 | - | 250.6 | - | - | - | - | - | - | |||
| 850 | 34 | 864 | mm | - | 7.92 | 12.7 | 15.88 | 9.53 | 17.48 | - | 12.7 | - | - | - | - | - | - |
| kg | - | 167.2 | 266.6 | 332.1 | 200.3 | 364.9 | - | 266.6 | - | - | - | - | - | - | |||
| 900 | 36 | 914 | mm | - | 7.92 | 12.7 | 15.88 | 9.53 | 19.05 | - | 12.7 | - | - | - | - | - | - |
| kg | 176.9 | 282.2 | 351.7 | 212.5 | 420.4 | - | 282.2 | - | - | - | - | - | - | ||||
| 950 | 38 | 965 | mm | - | - | - | - | 9.53 | - | - | 12.7 | - | - | - | - | - | - |
| kg | - | - | - | - | 224.56 | - | - | 298.26 | - | - | - | - | - | - | |||
| 1000 | 40 | 1016 | mm | - | - | - | - | 9.53 | - | - | 12.7 | - | - | - | - | - | - |
| kg | - | - | - | - | 236.54 | - | - | 314.23 | - | - | - | - | - | - | |||
| 1050 | 42 | 1067 | mm | - | - | - | - | 9.53 | - | - | 12.7 | - | - | - | - | - | - |
| kg | - | - | - | - | 248.53 | - | - | 330.21 | - | - | - | - | - | - | |||
| 1100 | 44 | 1118 | mm | - | - | - | - | 9.53 | - | - | 12.7 | - | - | - | - | - | - |
| kg | - | - | - | - | 260.52 | - | - | 346.18 | - | - | - | - | - | - | |||
| 1150 | 46 | 1168 | mm | - | - | - | - | 9.53 | - | - | 12.7 | - | - | - | - | - | - |
| kg | - | - | - | - | 272.27 | - | - | 361.84 | - | - | - | - | - | - | |||
| 1200 | 48 | 1219 | mm | - | - | - | - | 9.53 | - | - | 12.7 | - | - | - | - | - | - |
| kg | - | - | - | - | 284.25 | - | - | 377.81 | - | - | - | - | - | - |
ASME B36.10: Standardizing the Dimensions of Welded and Seamless Wrought Steel Pipes
ASME B36.10 is crucial for ensuring uniformity and consistency in the manufacturing and use of steel pipes in various industries.
One of the key aspects of ASME B36.10 is the standardization of dimensions for both high and low temperatures and pressures. This means that manufacturers and users can rely on these standards to ensure that the pipes they are using meet the necessary requirements for the specific application. Whether it's for transporting fluids, gases, or solids, having standardized dimensions is essential for the safe and efficient operation of pipelines.
The standard covers a wide range of materials, including stainless steel, which is commonly used in industries where corrosion resistance is a priority. By specifying the dimensions of stainless steel pipes, ASME B36.10 helps ensure that these pipes can withstand the harsh conditions they may be subjected to without compromising their structural integrity.
One of the key dimensions covered by ASME B36.10 is wall thickness. This is a critical factor in determining the strength and durability of a pipe, especially when it comes to withstanding high pressures or temperatures. By standardizing the wall thickness of welded and seamless wrought steel pipes, ASME B36.10 provides a reliable reference point for manufacturers and users to ensure that the pipes they are using are up to the task.
Whether it's for industrial, commercial, or residential applications, having standardized dimensions for welded and seamless wrought steel pipes is essential for ensuring the safety and reliability of pipelines. ASME B36.10 plays a crucial role in this by providing a set of guidelines that manufacturers and users can follow to ensure that the pipes they are using meet the necessary requirements.
In conclusion, ASME B36.10 is an important standard that covers the standardization of dimensions for welded and seamless wrought steel pipes. By specifying the dimensions of these pipes, including wall thickness and material, ASME B36.10 helps ensure that pipelines can safely and efficiently transport fluids, gases, or solids in a wide range of industries. Whether it's for high or low temperatures and pressures, having standardized dimensions is essential for the proper functioning of pipelines in various applications.
Above is the data sheet of ASME B36.10, if you need more information please contact FLUIDO.
