Check Valves let fluid move one way and stop it from flowing back. These valves help keep systems running smoothly and safely. They make sure the fluid goes the right way without turning around. Backflow could harm the system or cause trouble. About Basic Operation Principle，check Valves work with a simple trick. They open to let flow go the right way. They shut on their own if flow tries to go backward.
Ball Check Valves use a round ball to block backward flow. When fluid goes the right way, it nudges the ball off the valve seat. This lets it pass. If flow flips, the ball drops back to the seat. Gravity or back pressure seals it shut. These valves fit well in tight spots.

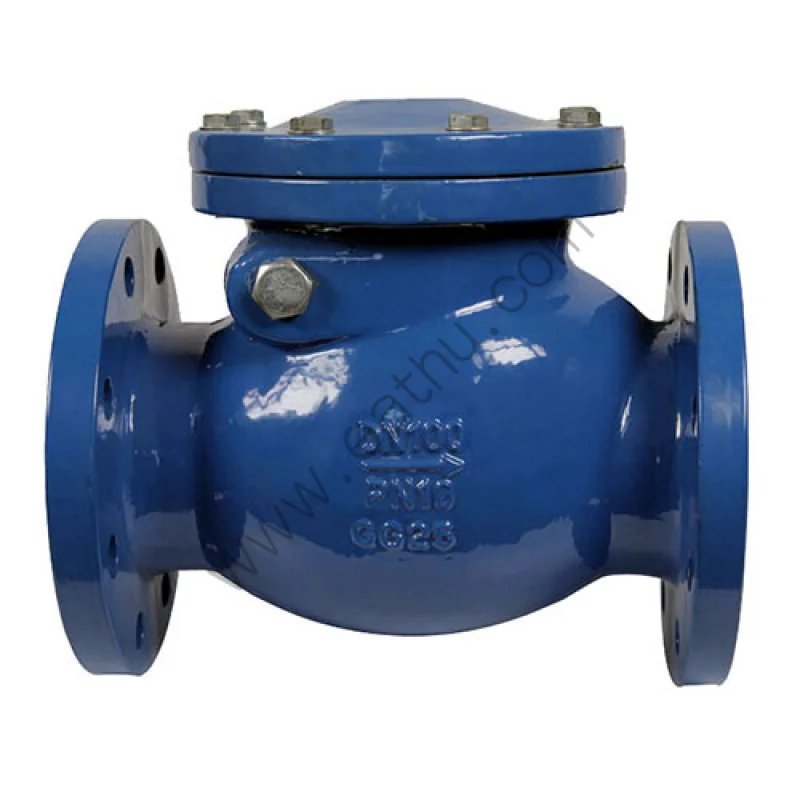

Swing Check Valves have a disc that swings on a hinge or pin to let flow through or stop it. The BS5153 Ductile Iron Rubber Disc Swing Check Valve is one kind. It uses tough ductile iron and a rubber disc for better sealing. These valves suit systems with low pressure drops. You’ll see them a lot in water and waste setups.
Lift Check Valves lift a disc off its seat when upstream pressure pushes it. When flow stops or turns back, the disc falls back down. Gravity or a spring pulls it to the seat. They need more room to set up than other types. But they seal great, so they’re good for high-pressure jobs.
Diaphragm Check Valves use a bendy diaphragm. It opens when pressure comes from one side. It closes when pressure drops or switches. These are handy for harsh fluids.
Tilting Disc Check Valves have a disc that tips open when fluid moves forward. It tips back to block reverse flow. This setup cuts down on water hammer and runs smoother than some other types. They’re often used in power plants. They handle high heat and pressure well.
Wafer Check Valves are slim units made for tight spots between flanges. They act like Swing Check Valves but take less room. They’re great for HVAC systems.

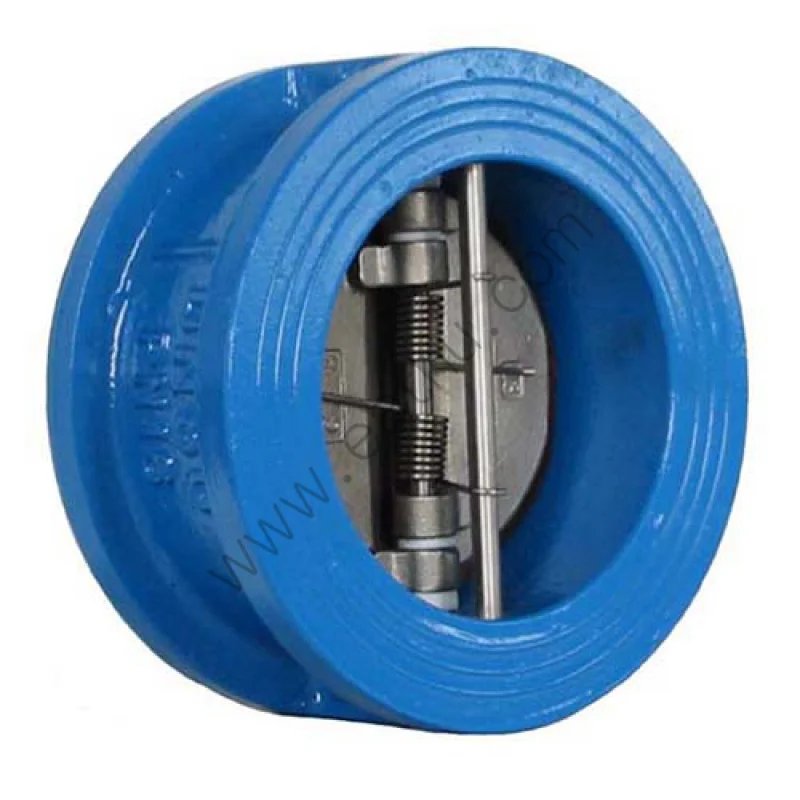

Dual Plate Check Valves have two spring-loaded plates. These open with forward flow and snap shut against backward flow. This design keeps pressure drops low and reacts fast. They fit high-speed systems like gas or oil pipelines.
Silent Check Valves use a spring to close quietly. This makes Silent Check Valves good for homes where noise matters. They also work in industry where quiet running is key.
Each Check Valve type has special traits for certain jobs. This ensures top performance across different fields. Picking the right one depends on system needs like pressure, heat, and fluid type. This leads to smooth, reliable running with less upkeep.
When choosing a Check Valve, think about how its materials match the fluid. Harsh fluids need stuff that won’t break down from chemical reactions. Also, account for viscosity and temperature to ensure valve reliability.
You need to look at a system’s flow traits, like speed and direction. Each type has its own flow style. For example, Ball Check Valves have low pressure drops. They suit tight spaces. Swing Check Valves work for low-drop systems due to their solid build.
Total cost covers more than just the buying price. It includes upkeep costs over time. Some designs need fixes or new parts more often due to wear.
Space to set up matters too. The Mini Ball Valve with Lever Handle is a small option. It fits tight spots without losing function.
FLUIDO gives custom fixes tailored to specific job needs across many fields. They work close with clients to get their unique wants. FLUIDO offers special Check Valves built for top performance in tough settings. Whether it’s picking the right materials or shaping custom designs, FLUIDO’s know-how delivers.
Choosing the right Check Valve means thinking about fluid fit, flow traits, full cost, setup space, structure strength, and custom options. Understanding these points and using expert help from folks like FLUIDO leads to smooth system running. It cuts risks from backflow or broken valves.
