The wall thickness and weight for steel pipe and butt welding pipe fitting 2021/01/11 13:56:49

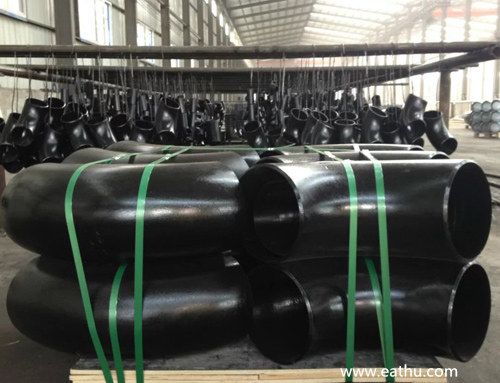

ASME B36.10M Welded and Seamless Wrought Steel Pipe, welded or seamlessly manufactured steel pipe, specifies the standard size, inner diameter, outer diameter, shape, unit weight and allowable deviation of the steel pipe. The corresponding Chinese standard is GB/T 17395-1998. The ASME B36.10M standard is widely used not only in the United States and South America, but also in Southeast Asia, the Middle East and Africa. For other standard steel pipes, even ductile iron pipes are also useful for reference.

Since welded pipe fittings are made of steel pipes, learning the dimensions of ASME B36.10 steel pipes will help to deepen the understanding of welded pipe fittings.

Eathu has been engaged in the production of butt welded pipe fittings for more than 20 years, and has rich experience in the production process of butt welded pipe fittings. Please check the size and weight of steel pipes and welded pipe fittings on the Eathu website. If you cannot find the information you need, please contact Eathu sale team.

Wall-Thickness-and-unit-weight-of-welded-and-seamless-wrought-steel-pipe-ASME-B36.10M

DN	NPS	OD		SCH5	SCH10	SCH20	STD	SCH40	XS	SCH80	SCH120	SCH160	XXS
6	1/8	10.3	mm	-	1.24	-	1.73	1.73	2.41	2.41	-	-	-
6	1/8	10.3	kg/m	-	0.28	-	0.37	0.37	0.47	0.47	-	-	-
8	1/4	13.7	mm	-	1.65	-	2.24	2.24	3.02	3.02	-	-	-
8	1/4	13.7	kg/m	-	0.49	-	0.63	0.63	0.8	0.8	-	-	-
10	3/8	17.1	mm	-	1.65	-	2.31	2.31	3.2	3.2	-	-	-
10	3/8	17.1	kg/m	-	0.63	-	0.84	0.84	1.1	1.1	-	-	-
15	1/2	21.3	mm	1.65	2.11	-	2.77	2.77	3.73	3.73	-	4.78	7.47
15	1/2	21.3	kg/m	0.8	1	-	1.27	1.27	1.62	1.62	-	1.95	2.55
20	3/4	26.7	mm	1.65	2.11	-	2.87	2.87	3.91	3.91	-	5.56	7.82
20	3/4	26.7	kg/m	1.03	1.28	-	1.69	1.69	2.2	2.2	-	2.9	3.64
25	1	33.4	mm	1.65	2.77	-	3.38	3.38	4.55	4.55	-	6.35	9.09
25	1	33.4	kg/m	1.29	2.09	-	2.5	2.5	3.24	3.24	-	4.24	5.45
32	1 ¼	42.2	mm	1.65	2.77	-	3.56	3.56	4.85	4.85	-	6.35	9.7
32	1 ¼	42.2	kg/m	1.65	2.69	-	3.39	3.39	4.47	4.47	-	5.61	7.77
40	1 ½	48.3	mm	1.65	2.77	-	3.68	3.68	5.08	5.08	-	7.14	10.15
40	1 ½	48.3	kg/m	1.9	3.11	-	4.05	4.05	5.41	5.41	-	7.25	9.56
50	2	60.3	mm	1.65	2.77	-	3.91	3.91	5.54	5.54	-	8.74	11.07
50	2	60.3	kg/m	2.39	3.93	-	5.44	5.44	7.48	7.48	-	11.11	13.44
65	2 ½	73	mm	2.11	3.05	-	5.16	5.16	7.01	7.01	-	9.53	14.02
65	2 ½	73	kg/m	3.75	5.26	-	8.63	8.63	11.41	11.41	-	14.92	20.39
80	3	88.9	mm	2.11	3.05	-	5.49	5.49	7.62	7.62	-	11.13	15.24
80	3	88.9	kg/m	4.52	6.46	-	11.29	11.29	15.27	15.27	-	21.35	27.68
90	3 ½	101.6	mm	2.11	3.05	-	5.74	5.74	8.08	8.08	-	-	-
90	3 ½	101.6	kg/m	5.18	7.41	-	13.57	13.57	18.63	18.63	-	-	-
100	4	114.3	mm	2.11	3.05	-	6.02	6.02	8.56	8.56	11.13	13.49	17.12
100	4	114.3	kg/m	5.84	8.37	-	16.07	16.07	22.32	22.32	28.32	33.54	41.03
125	5	141.3	mm	2.77	3.4	-	6.55	6.55	9.53	9.53	12.7	15.88	19.05
125	5	141.3	kg/m	9.46	11.56	-	21.77	21.77	30.97	30.97	40.28	49.11	57.43
150	6	168.3	mm	2.77	3.4	-	7.11	7.11	10.97	10.97	14.27	18.26	21.95
150	6	168.3	kg/m	11.31	13.83	-	28.26	28.26	42.56	42.56	54.2	67.56	79.22
200	8	219.1	mm	2.77	3.76	6.35	8.18	8.18	12.7	12.7	18.26	23.01	22.23
200	8	219.1	kg/m	14.78	19.97	33.31	42.55	42.55	64.64	64.64	90.44	111.2	107.9
250	10	273.1	mm	3.4	4.19	6.35	9.27	9.27	12.7	15.09	21.44	28.58	25.4
250	10	273.1	kg/m	22.61	27.77	41.77	60.31	60.31	81.55	96.01	133	172.3	155.1
300	12	323.9	mm	3.96	4.57	6.35	9.53	10.31	12.7	17.48	25.4	33.32	25.4
300	12	323.9	kg/m	31.24	35.98	49.73	73.88	79.73	97.46	132	186.9	238.7	186.9
350	14	355.6	mm	3.96	6.35	7.92	9.53	11.13	12.7	19.05	27.79	35.71	-
350	14	355.6	kg/m	34.34	54.69	67.9	81.33	94.55	107.3	158.1	224.6	281.7	-
400	16	406.4	mm	4.19	6.35	7.92	9.53	12.7	12.7	21.44	30.96	40.49	-
400	16	406.4	kg/m	41.56	62.64	77.83	93.27	123.3	123.3	203.5	286.6	365.3	-
450	18	457.2	mm	4.19	6.35	7.92	9.53	14.27	12.7	23.83	34.93	45.24	-
450	18	457.2	kg/m	46.79	70.57	87.71	105.1	155.8	139.1	254.5	363.5	459.3	-
500	20	508	mm	4.78	6.35	9.53	9.53	15.09	12.7	26.19	38.1	50.01	-
500	20	508	kg/m	59.32	78.55	117.1	117.1	183.4	155.1	311.1	441.4	664.8	-
550	22	559	mm	4.78	6.35	9.53	9.53	-	12.7	28.58	41.28	53.98	-
550	22	559	kg/m	65.33	86.54	129.1	129.1	-	171	373.8	527	672.2	-
600	24	610	mm	5.54	6.35	9.53	9.53	17.48	12.7	30.96	46.02	59.54	-
600	24	610	kg/m	82.58	94.53	141.1	141.1	255.4	187	442	640	808.2	-
650	26	660	mm	-	7.92	12.7	9.53	-	12.7	-	-	-	-
650	26	660	kg/m	-	127.3	202.7	152.8	-	202.7	-	-	-	-
700	28	711	mm	-	7.92	12.7	9.53	-	12.7	-	-	-	-
700	28	711	kg/m	-	137.3	218.6	164.8	-	218.6	-	-	-	-
750	30	762	mm	6.35	7.92	12.7	9.53	-	12.7	-	-	-	-
750	30	762	kg/m	118.34	147.2	234.6	176.8	-	234.6	-	-	-	-
800	32	813	mm	-	7.92	12.7	9.53	17.48	12.7	-	-	-	-
800	32	813	kg/m	-	157.2	250.6	188.8	342.9	250.6	-	-	-	-
850	34	864	mm	-	7.92	12.7	9.53	17.48	12.7	-	-	-	-
850	34	864	kg/m	-	167.2	266.6	200.3	364.9	266.6	-	-	-	-
900	36	914	mm	-	7.92	12.7	9.53	19.05	12.7	-	-	-	-
900	36	914	kg/m		176.9	282.2	212.5	420.4	282.2	-	-	-	-
950	38	965	mm	-	-	-	9.53	-	12.7	-	-	-	-
950	38	965	kg/m	-	-	-	224.56	-	298.26	-	-	-	-
1000	40	1016	mm	-	-	-	9.53	-	12.7	-	-	-	-
1000	40	1016	kg/m	-	-	-	236.54	-	314.23	-	-	-	-
1050	42	1067	mm	-	-	-	9.53	-	12.7	-	-	-	-
1050	42	1067	kg/m	-	-	-	248.53	-	330.21	-	-	-	-
1100	44	1118	mm	-	-	-	9.53	-	12.7	-	-	-	-
1100	44	1118	kg/m	-	-	-	260.52	-	346.18	-	-	-	-
1150	46	1168	mm	-	-	-	9.53	-	12.7	-	-	-	-
1150	46	1168	kg/m	-	-	-	272.27	-	361.84	-	-	-	-
1200	48	1219	mm	-	-	-	9.53	-	12.7	-	-	-	-
1200	48	1219	kg/m	-	-	-	284.25	-	377.81	-	-	-	-

Download the PDF file: Wall-Thickness-and-unit-weight-of-welded-and-seamless-wrought-steel-pipe-ASME-B36.10M.

Check weight list and price list for butt welding pipe fittings from butt welding pipe fitting page.
