In the field of piping systems, reducers are essential components designed to connect pipes of differing diameters while preserving system integrity. By facilitating a seamless transition between varying pipe sizes, reducers effectively regulate flow rate and pressure. This ensures optimal system efficiency and minimizes the risk of leaks, thereby maintaining overall operational reliability.
As a leading manufacturer and exporter specialized in steel valves, fittings, pipe couplings and flanges, FLUIDO has been serving 35+ countries/regions for over 20 years. In addition to manufacturing its own flanges, FLUIDO also established partnership with factories in Shandong and Hebei, so as to provide customers with a full range of products and one-stop sourcing services.

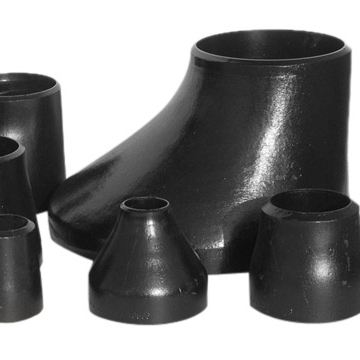

Understanding the types of reducers is essential for making informed decisions for different applications. There are primarily two types of reducers used in piping systems: Concentric Reducers and Eccentric Reducers.
A concentric reducer is shaped like a cone, providing a gradual transition between the larger and smaller pipe. This uniform taper ensures an even flow, minimizing turbulence and reducing flow losses. These reducers are commonly used in applications where the pipe remains horizontal, such as in pumping systems and pipelines carrying liquids. The symmetrical shape helps maintain the centerline and balances the hydraulic forces equally.
An eccentric reducer, on the other hand, has an edge that is parallel to the pipeline, providing an offset taper. This type is especially beneficial when dealing with horizontal flows of gases or slurries. By allowing the bottom of the pipeline to remain horizontally aligned, eccentric reducers prevent air pockets, which could disrupt flows in systems handling fluids with low viscosity or in vent systems.
Selecting the right reducer involves evaluating several factors to ensure compatibility and efficiency within your piping system. Key considerations include pipe size compatibility, flow requirements, and material compatibility.
Ensuring the reducer fits the specific pipe sizes in your system is fundamental. Misalignment can lead to pressure drops, turbulence, and potential system failure. Always measure the inner and outer diameters of the pipes to select a reducer that matches the specifications accurately. Using precise measurements helps in avoiding unnecessary adjustments or additional fittings.
Analyzing the flow requirements is critical. The type of fluid or gas, pressure, and velocity must be considered to determine the appropriate reducer type. If the flow rate is high, a concentric reducer might be preferable to maintain a steady flow. Conversely, for low-velocity fluids, an eccentric reducer works best to avoid cavitation and ensure smooth fluid transition without air entrapment.
FLUIDO's commitment to customer satisfaction is reflected in their excellent customer service and support. Their knowledgeable team is available to assist customers with technical inquiries, product selection, and after-sales service, ensuring a seamless experience throughout the entire process.
The material of the reducer must be compatible with the fluid or gas it will convey. For example, a steel reducer is suitable for high-pressure systems, while a plastic one might be used for low-pressure water transport. Consider the chemical properties of the fluid, such as pH level, temperature, and potential for corrosion, when selecting the reducer material to prevent degradation and prolong the system's lifespan.
In the oil and gas industry, reducers must handle high pressures and temperatures. The material selection here is critical, often favoring carbon steel or stainless steel reducers to withstand the harsh conditions. Size compatibility is crucial to avoid causing pressure build-up or drops that could lead to catastrophic failures. Understanding the specific requirements of drilling, production, and refining stages helps ensure the right reducer is chosen.
Chemical processing plants often deal with corrosive and reactive materials, necessitating reducers made from materials like stainless steel, PTFE, or other corrosion-resistant alloys. The flow requirements and chemical compatibility are pivotal to prevent adverse reactions or degradation of the piping system. This industry also demands precision in size compatibility and material integrity to maintain smooth operations and safety compliance.
For residential and commercial plumbing systems, reducers help manage water pressure and flow between different pipe sizes. Materials like PVC, copper, and PEX are common due to their durability and compatibility with potable water. Proper sizing is essential to avoid leaks and ensure efficient water flow within the plumbing network. The choice of reducer also depends on local plumbing codes and standards which ensure safety and health compliance.
In HVAC systems, reducers manage the flow of air through ductwork, ensuring efficient heating, ventilation, and air conditioning. Aluminum and galvanized steel are common materials due to their resistance to rust and corrosion. Installers need to ensure the reducers are appropriately sized to maintain good airflow dynamics without causing pressure losses or noise issues. Proper fitting techniques are important to maintain the system's efficiency and longevity.
Correct installation of pipe reducers is critical for maintaining system integrity and efficiency.
Proper fitting techniques include ensuring a secure and leak-proof connection. Use correct gaskets and sealing materials suitable for the type of fluid or gas being transported. Align the pipes perfectly to avoid stress and misalignment, which can lead to failure. Secure the reducer with appropriate clamps or welding techniques as per the material compatibility and system requirements.
Common mistakes include improper alignment, over-tightening which can crack or deform the reducer, and neglecting material compatibility. Using incorrect fittings or ignoring temperature and pressure ratings can compromise the system's efficiency and safety. It is essential to follow manufacturer's guidelines and industry best practices to ensure a successful installation.
Adhering to industry standards and regulations ensures that the installed reducers meet safety and performance criteria.
ISO standards provide guidelines on quality, safety, and efficiency for pipe reducers. These standards ensure that reducers are manufactured adhering to global best practices, ensuring reliability and compatibility across various applications.
The American National Standards Institute (ANSI) and the American Society of Mechanical Engineers (ASME) have set detailed specifications for reducers. Adhering to these standards ensures the reducers can withstand specific pressures, temperatures, and chemical environments, thereby assuring safety and operational efficiency.
What are the main differences between concentric and eccentric reducers? Concentric reducers have a symmetrical shape ideal for liquid flows, ensuring even distribution and minimizing turbulence. Eccentric reducers, however, have an edge parallel to the pipeline, preventing air pockets in horizontal flow of gases and low-density fluids.
How do I determine the correct size of a reducer for my piping system? Measure the inner and outer diameters of the existing pipes and match them with the reducer's specifications. Consider the flow requirements and ensure material compatibility with the transported fluid or gas.
What materials are commonly used for pipe reducers? Materials commonly used include carbon steel, stainless steel, PVC, copper, and other alloys. The choice depends on the application's pressure, temperature, and chemical environment.
Can improper installation of reducers affect system performance? Yes, improper installation can lead to leaks, pressure drops, and system failures. Ensuring correct alignment, appropriate securing, and material compatibility is essential for optimal performance.
Selecting the right reducer is crucial for the efficiency, safety, and longevity of any pipeline system. By considering factors such as pipe size, flow requirements, material compatibility, and adhering to industry standards, you can make informed decisions suitable for both industrial and residential applications. Proper installation and adherence to guidelines further ensure that the piping systems operate smoothly and efficiently, mitigating potential risks and prolonging their lifespan.
With FLUIDO's Reducer, customers can trust in the seamless connection and smooth transition between pipes of different sizes. Whether it's for industrial, commercial, or residential applications, FLUIDO's Reducers provide a reliable solution for optimizing the flow and performance of piping systems.
