| NPS | A | B | C | |
| 1/2 | INCH | 3/4 | 1.3/8 | 15/16 |
| MM | 19.05 | 34.93 | 23.81 | |
| 3/4 | INCH | 7/8 | 1.3/4 | 1.3/16 |
| MM | 22.23 | 44.45 | 30.16 | |
| 1 | INCH | 1.1/16 | 2.1/8 | 1.7/16 |
| MM | 26.99 | 53.98 | 36.51 | |
| 1.1/4 | INCH | 1.1/4 | 2.9/16 | 1.3/4 |
| MM | 31.75 | 65.09 | 44.45 | |
| 1.1/2 | INCH | 1.5/16 | 2.7/8 | 2 |
| MM | 33.34 | 73 | 50.8 | |
| 2 | INCH | 1.1/2 | 3.1/2 | 2.9/16 |
| MM | 38.1 | 88.9 | 65.09 | |
| 2.1/2 | INCH | 1.5/8 | 4.1/16 | 3 |
| MM | 41.28 | 103.19 | 76.2 | |
| 3 | INCH | 1.3/4 | 4.13/16 | 3.11/16 |
| MM | 44.45 | 122.24 | 93.66 | |
| 3.1/2 | INCH | 1.7/8 | 5.3/8 | 4 |
| MM | 47.63 | 136.53 | 101.6 | |
| 4 | INCH | 2 | 6 | 4.3/4 |
| MM | 50.8 | 152.4 | 120.65 | |
| 5 | INCH | 2.1/4 | 7.1/16 | 5.9/16 |
| MM | 57.15 | 179.39 | 141.29 | |
| 6 | INCH | 3.1/16 | 8.7/8 | 6.11/16 |
| MM | 77.79 | 225.43 | 169.86 | |
| 8 | INCH | 3.7/8 | 11.1/2 | 8.11/16 |
| MM | 98.43 | 292.1 | 220.66 | |
| 10 | INCH | 3.11/16 | 12.3/4 | 10.7/16 |
| MM | 93.66 | 323.9 | 265.11 | |
| 12 | INCH | 4.1/16 | 14.15/16 | 12.1/2 |
| MM | 103.19 | 379.41 | 317.5 | |
| 14 | INCH | 3.15/16 | 17 | 13.13/16 |
| MM | 100.01 | 431.8 | 350.84 | |
| 16 | INCH | 4.3/16 | 18.3/8 | 15.7/8 |
| MM | 106.36 | 466.73 | 403.23 | |
| 18 | INCH | 4.3/8 | 20.3/8 | 17.5/16 |
| MM | 111.13 | 517.53 | 439.74 | |
| 20 | INCH | 4.11/16 | 22.15/16 | 20.1/16 |
| MM | 119.06 | 582.61 | 509.59 | |
| 24 | INCH | 5.1/2 | 27.7/8 | 24.3/16 |
| MM | 139.7 | 708.03 | 614.36 |

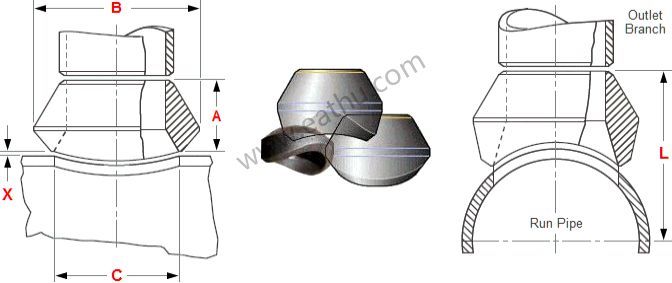

X is the bottom gap of welding.
The socket welded size is according to ASME B16.11, and the design is according to MSS SP-97.
All China forged fitting manufacturers make mold according to BONNEY FORGE or BOTH WELL.
•Sockolet® is a registered trademark, we all call this product as "Socket Weld Outlet"
