Introduction

Butt Welded pipe fittings are connect pipes and other components, allowing for the efficient transport of fluids and gases. However, as with any other mechanical component, butt welded pipe fittings must be inspected to ensure their quality, safety, and reliability. This article will discuss the inspection of butt welded pipe fittings, including the steps involved, the standards used, and the  Inspection Report Information.

Step 1: Material Inspection

The first step in the inspection of butt welded pipe fittings is the material inspection. This involves verifying that the material used to manufacture the fittings meets the specified requirements. The materials used for welded pipe fittings are typically carbon steel ASTM A234, stainless steel 304 or 316, and alloy steel F series. The inspection of the material involves checking the chemical composition, mechanical properties, and microstructure of the material. The material inspection is performed in accordance with the ASTM B16.9 standard.

Download the ASTM A234 material standard here.

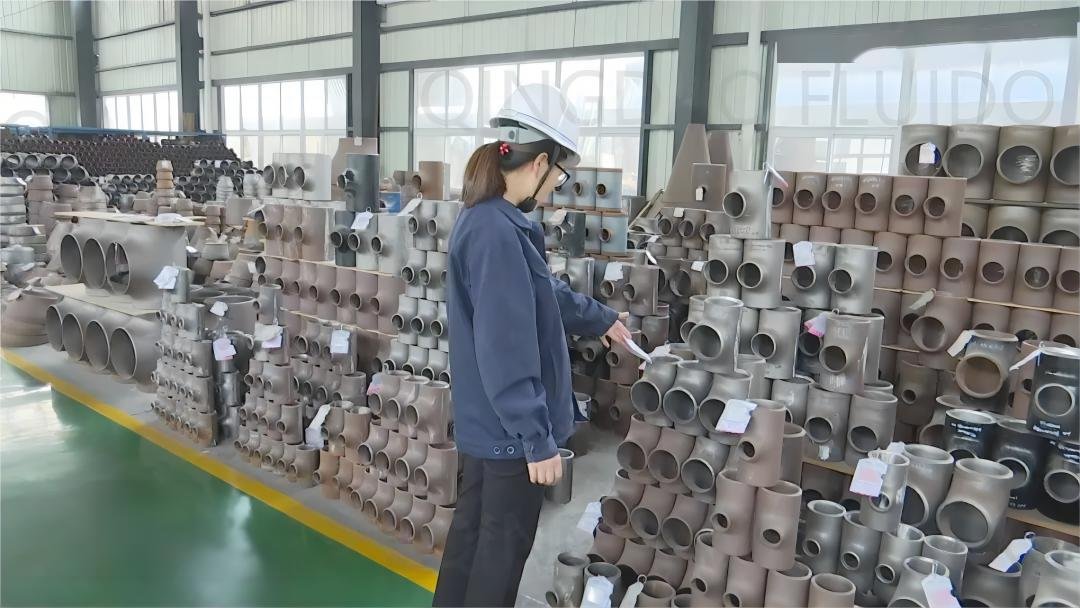

Step 2: Dimensional Inspection

The second step in the inspection of butt welded pipe fittings is the dimensional inspection. This involves verifying that the fittings meet the specified dimensions. The dimensions of the fittings include the diameter, wall thickness, length, and angle of the bend. The dimensional inspection is performed using specialized instruments such as calipers, micrometers, and gauges. The dimensional inspection is performed in accordance with the ASTM B16.9 standard or DIN standard.

Download the ASTM B16.9 standard and DIN 2617 from here.

Step 3: Pressure Testing

The third step in the inspection of butt welded pipe fittings is the pressure testing. This involves verifying that the fittings can withstand the specified pressure without leaking or failing. The pressure testing is performed using hydraulic or pneumatic pressure testing equipment. The pressure testing is performed in accordance with the ASTM B16.9 standard.

Check the butt welding pipe fittings' pressure testing report please contact Qingdao Fluido.

Standards Used for Inspection

The inspection of butt welded pipe fittings is performed in accordance with the ASTM B16.9 standard. This standard provides the guidelines for the manufacture, inspection, and testing of wrought steel and wrought steel fittings. The standard covers the dimensions, tolerances, materials, and testing requirements for butt welded pipe fittings.

QINGDAO FLUIDO has been engaged in the pipe fitting industry for more than twenty years, please contact us if you have any questions about butt welded pipe fitting inspection.

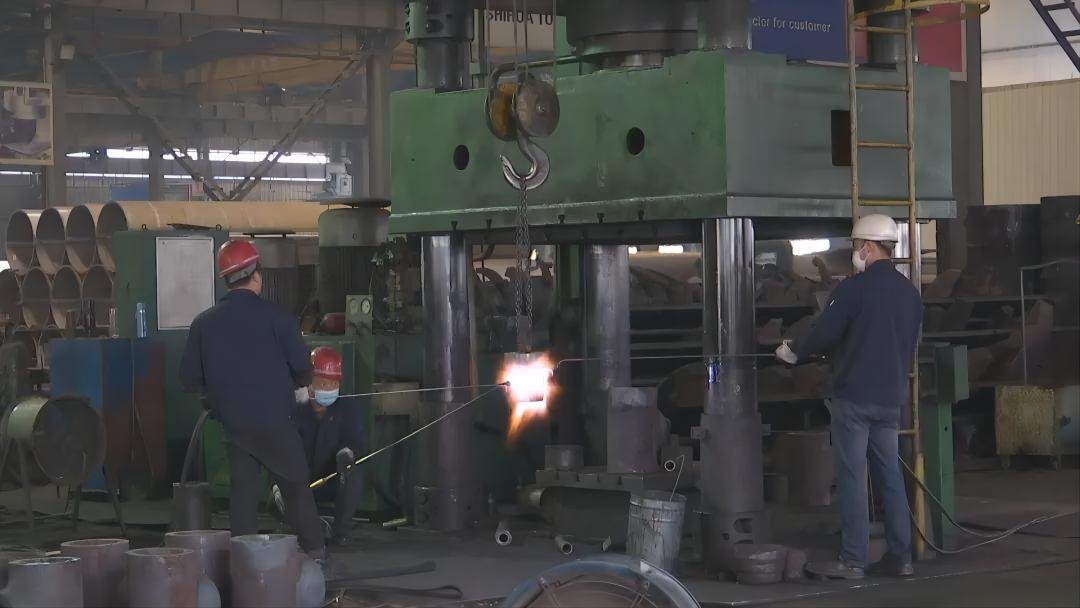

Inspection Report Information

The inspection report for butt welded pipe fittings has the following main contents: quantity count (usually requested by the customer), material testing (usually performed by inspecting the material list of the pipe mill, including the chemical composition and mechanical properties of the materials used in the fittings), dimensional inspection data (inspection of each dimension of the butt welded pipe fittings and comparison with the tolerances specified in B16.9), pressure test or burst test report (usually the engineering party's special requirements).

Conclusion

The inspection of butt welded pipe fittings is an essential process that ensures the quality, safety, and reliability of piping systems. The inspection involves verifying that the material used for the fittings meets the specified requirements, that the fittings meet the specified dimensions, and that the fittings can withstand the specified pressure without leaking or failing. The inspection is performed in accordance with the ASTM B16.9 standard, which provides the guidelines for the manufacture, inspection, and testing of wrought steel and wrought steel fittings. The inspection requires certain data to be collected and recorded, including the material test reports, the heat treatment records, the dimensional inspection reports, and the pressure testing reports.
