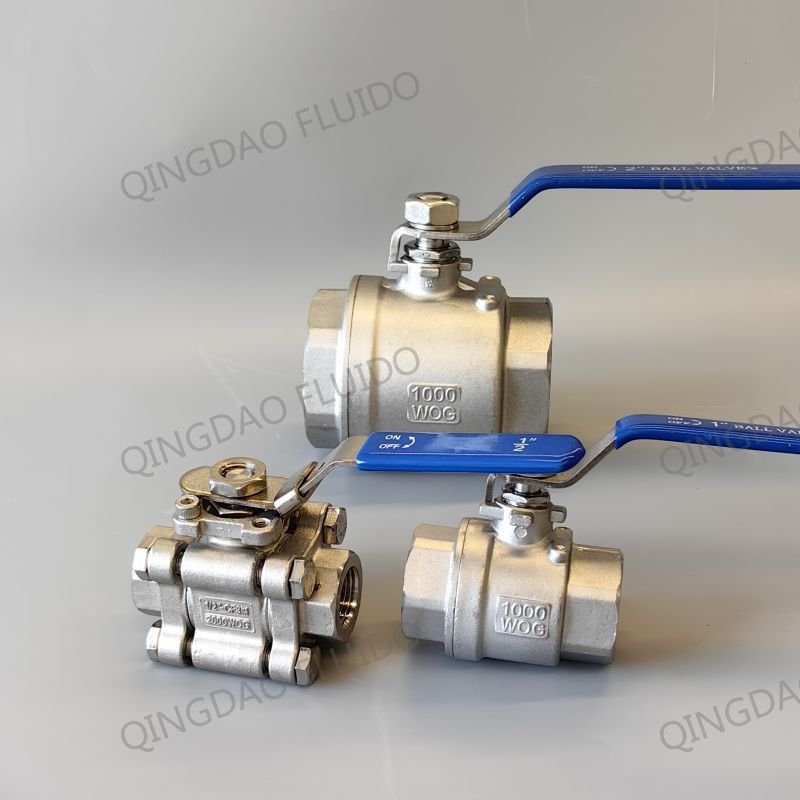

Different Types of Ball Valves and Their Uses
Qingdao Fluido Industrial Co., Ltd
Introduction:
Ball valves are essential components in various industries for controlling the flow of fluids and gases. They are widely used due to their reliability, durability, and ease of operation. This article aims to explore the different types of ball valves and their specific uses.
1. Full Port Ball Valve:
The full port ball valve, also known as a full bore ball valve, has a larger ball and a larger bore diameter. This design allows for minimal flow restrictions, making it suitable for applications that require maximum flow capacity. Industries such as oil and gas, water treatment, and chemical processing commonly use full port ball valves.
2. Reduced Port Ball Valve:
In contrast to the full port ball valve, the reduced port ball valve has a smaller ball and a smaller bore diameter. This design restricts the flow to some extent, making it suitable for applications that require moderate flow capacity. Reduced port ball valves are commonly used in residential plumbing systems and smaller-scale industrial applications.
3. V-port Ball Valve:
The V-port ball valve has a V-shaped ball with a specific angle, typically 30, 60, or 90 degrees. This design allows for precise flow control, making it suitable for applications that require accurate modulation. V-port ball valves are commonly used in industries such as chemical processing, food and beverage, and pharmaceuticals.
4. Trunnion Ball Valve:
Trunnion ball valves have additional mechanical support provided by a trunnion, which is a fixed shaft or spindle at the bottom of the ball. This design ensures stability and prevents excessive pressure on the ball, making it suitable for high-pressure and large-diameter applications. Trunnion ball valves are commonly used in industries such as oil and gas, power generation, and petrochemicals.
5. Floating Ball Valve:
Floating ball valves rely on the pressure of the fluid to create a seal between the ball and the seat. The ball is not fixed and is free to move slightly, allowing for a tight seal. This design is suitable for low-pressure applications and is commonly used in industries such as water supply, irrigation systems, and HVAC (Heating, Ventilation, and Air Conditioning).
Conclusion:
Ball valves are available in various types, each designed to cater to specific applications and requirements. Full port ball valves offer maximum flow capacity, reduced port ball valves provide moderate flow capacity, V-port ball valves allow for precise flow control, trunnion ball valves are suitable for high-pressure applications, and floating ball valves are ideal for low-pressure applications. Understanding the different types of ball valves and their uses is crucial in selecting the right valve for a particular industry or application.
